- Support Intel LGA 1700 Alder Lake-S processor up to 125W
- Support DDR5 4800MHz, up to 64GB
- 5 Independent Displays: 5 DP++ (1 from CPU, 4 from MXM)
- Multiple Expansion: 1 MXM type B plus, 2 M.2 M Key
| Platform | CPU : Support Intel® 12/13/14th Gen. Core i Processors PCH : Q670E BIOS : AMI UEFI 256Mbit |
|---|---|
| Memory | DDR5 5200MHz / 2 x 262pin DDR5 SO-DIMM up to 64GB (up to 32GB per slot) |
| AI accelerator | MXM graphics module version 3.1, Type B (PCIe Gen 4 x16) |
| Graphics | Controller : Intel UHD Graphics 770 |
| Displays | DP++ 1.4 (4K@60Hz) 5 x DP++ (1 from CPU, 4 from MXM) |
| Ethernet | 5 x Intel I226 2.5Gbps |
| Expansion Slots | 2 x M.2 2280 M Key (PCIe Gen 4 x4 / SATAIII), ECC support in R680E PCH 1 x MXM Type B (PCIe Gen4 x16) |
| Internal I/O | 4 x USB2.0 (Pin Header 2x5P, 2.54mm pitch) 2 x SATA 3.0 (up to 6Gb/s) 4 x RS232/RS485/RS422 (COM1~4) 2 x M.2 M Key for storage 8-bit GPIO (4 in/ 4 out) |
| Front I/O | 1 x USB 3.2 Gen2x2 Type-C 6 x USB 3.2 Gen2x1 Type-A 5 x RJ-45 |

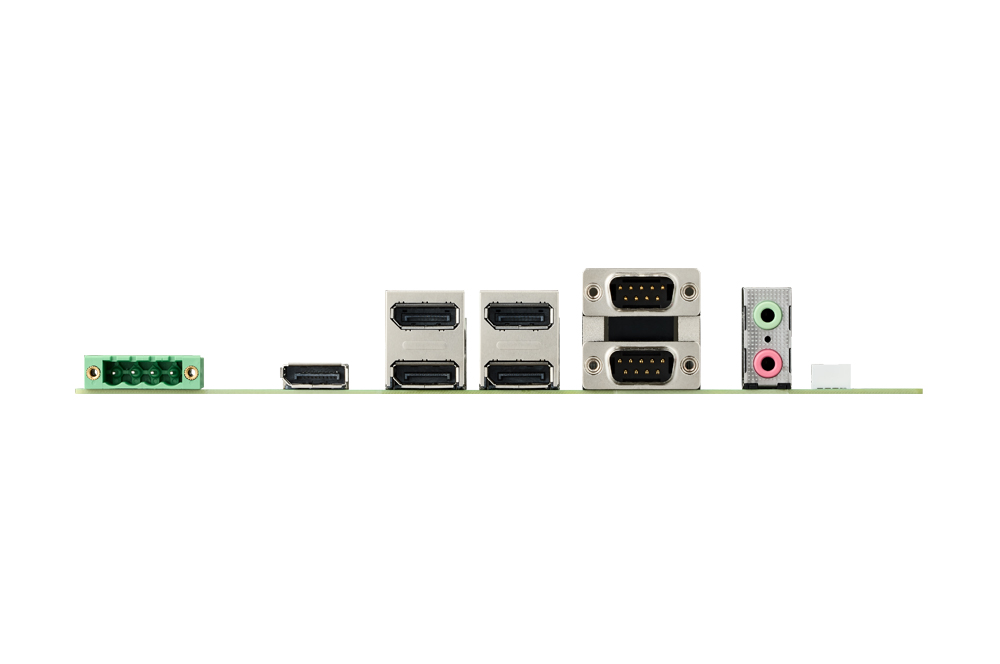

| Rear I/O | 5 x DP++ 1 x Line-oDut, 1 x Mic-in 1 x 4 pin Phoenix header (DC Jack) |
| Power | 24V DC-in 4 pin Phoenix header |
| Power Input | DC 19V |
| Environment | Operating Temp. 0 ~ 60°C Storage Temp. -40 ~ 85°C Operating Humidity : 5 to 90% non-condensing |
| Watchdog Timer | Programmable from 1 to 255 Seconds |
| Security | TPM 2.0 |
| Dimensions (L x W) | 248 x 222 mm |
| Operating System | Windows / Linux |
| Certification | CE / FCC / RoHS |
| MXM Type B | NVIDIA RTX 5000 Ada NVIDIA RTX A4500 NVIDIA RTX 3500 Ada NVIDIA Quadro RTX 5000 NVIDIA Quadro RTX 3000 |
|---|
