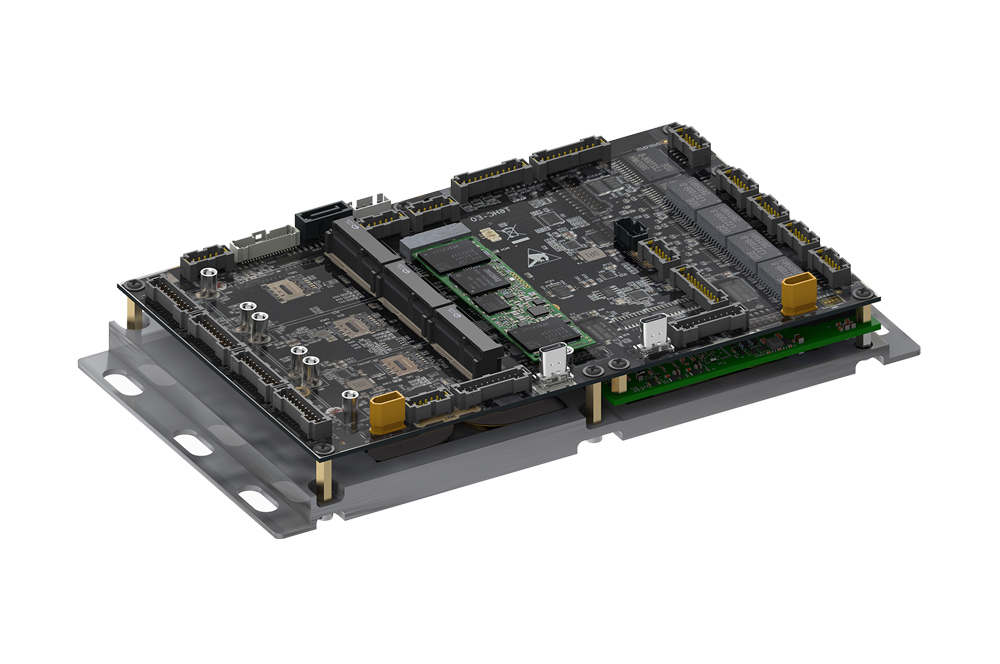

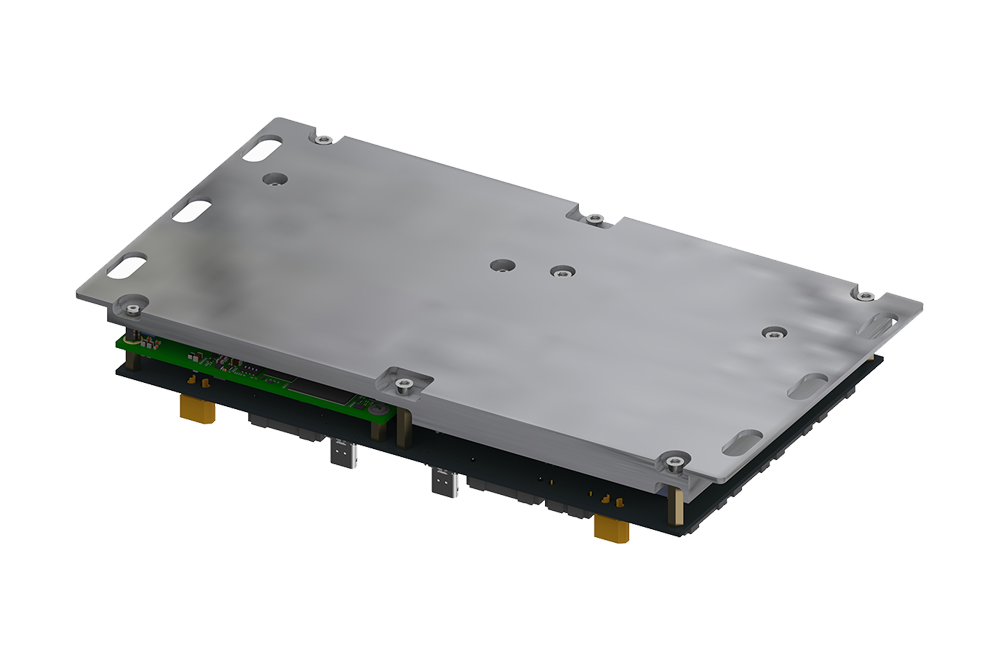

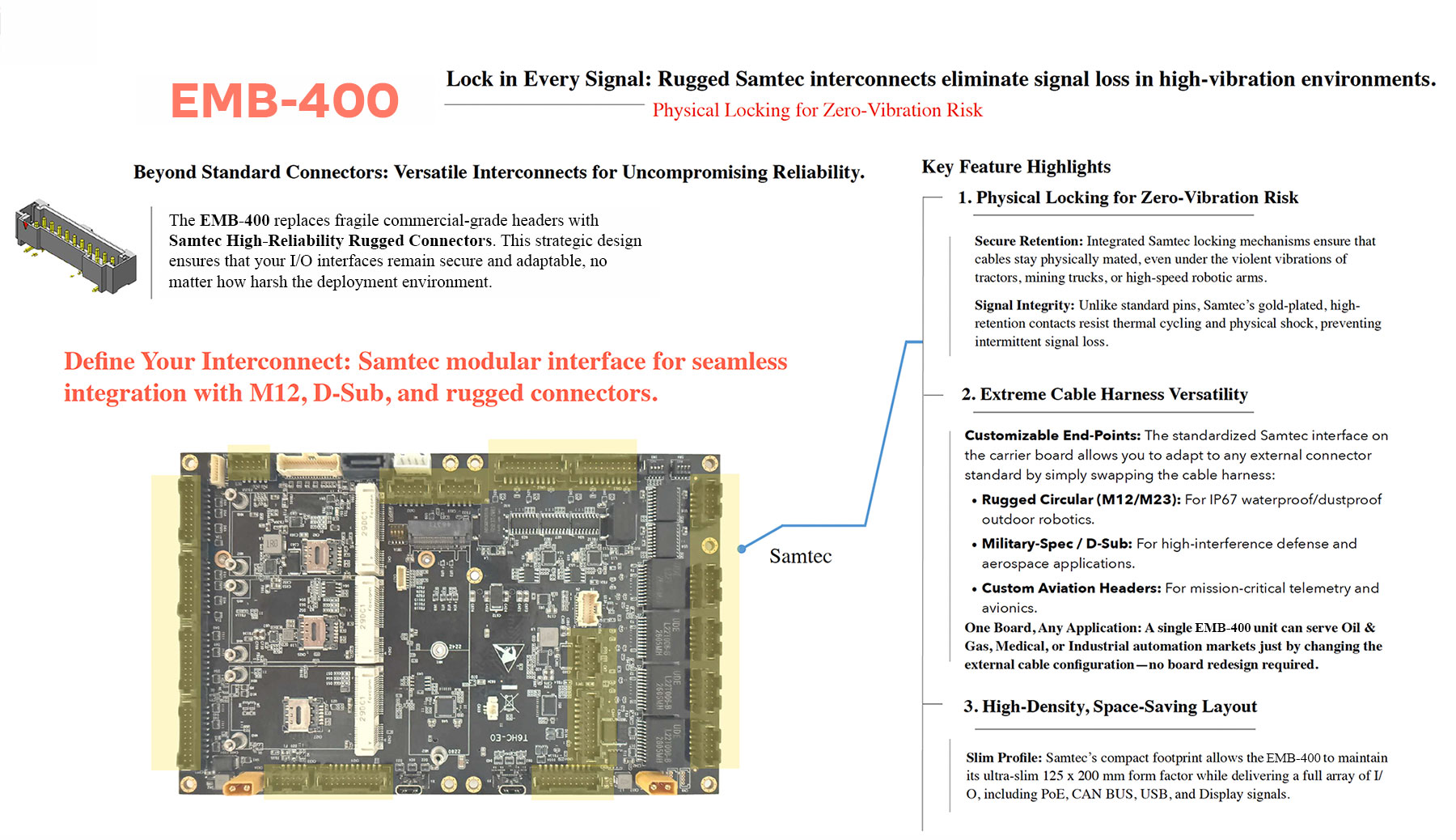

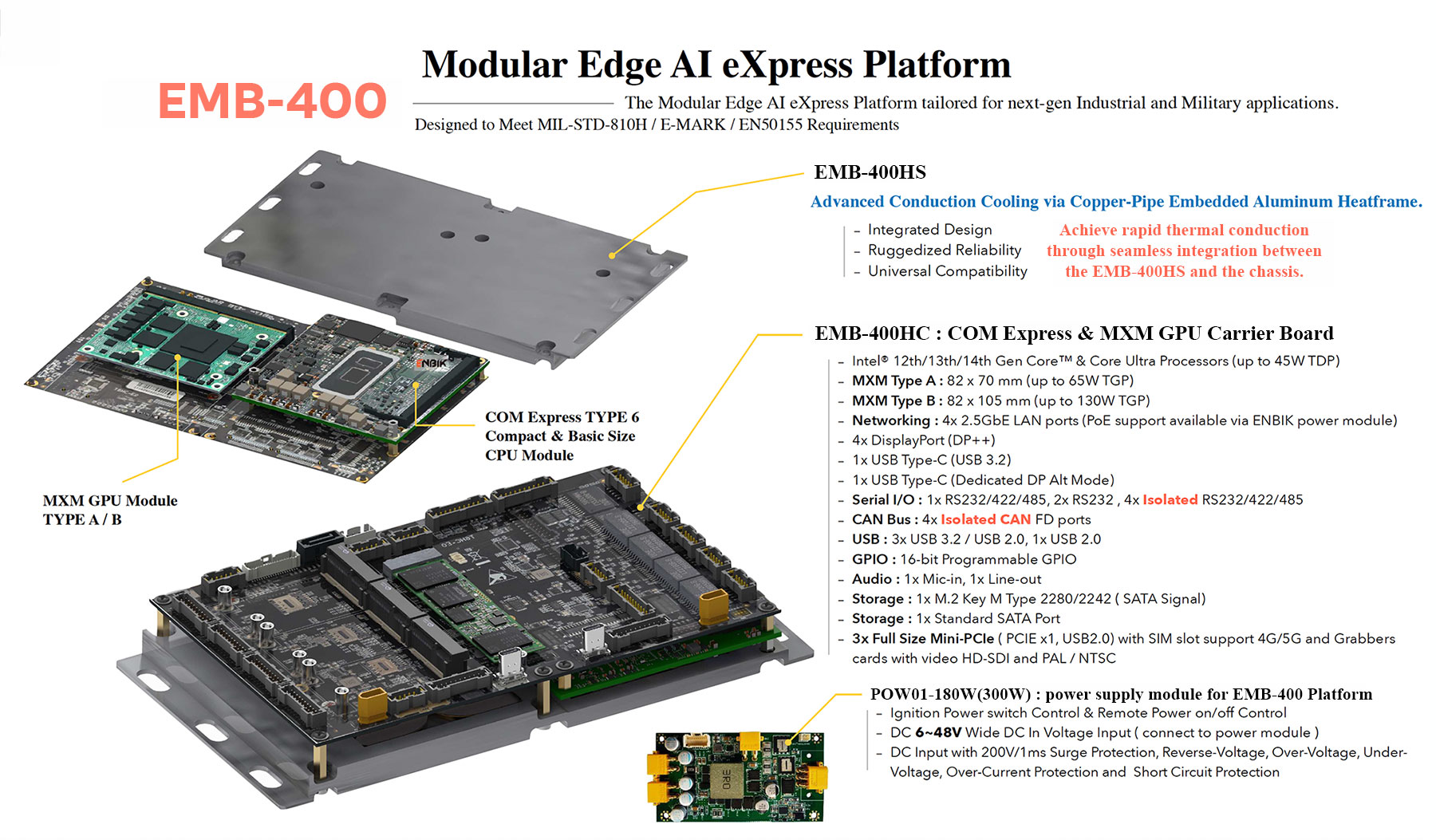

EMB-400 Edge AI Board

System

COM Express Compliance	COM Express Type 6 revision 3.1
MXM Compliance	MXM 3.1

Interface

Display	4x Display, on board header ( SAMTEC Connector ) 2x DP ++, 4096*2160@60Hz (From COM Express Computer Module) 2x DP ++, 7680*4320@120Hz (From MXM Graphic Card)
LVDS	1x LVDS (hirose connector)
Ethernet	4x 2.5 GbE, on board header ( SAMTEC Connector )
PoE	Optional: 4x IEEE 802.3at PoE PSE ports (requires ENBIK PoE Power Module)
CAN	4x CAN ( Isolation), on board header ( SAMTEC Connector )
COM	4x RS232/422/485 (Isolation), on board header (SAMTEC Connector ) 1x RS232, on board header (SAMTEC Connector) , 1x RS232 ( TX, RX) 1x RS232/422/485, on board header ( SAMTEC Connector )
USB	3x USB3.2 ( 3x USB 3.2/ 3x USB 2.0) and 1x USB2.0, on board header (SAMTEC Connector)
Type C	1x USB Type-C: Supports USB 3.2 & 1x USB Type-C: Supports DP Alt Mode (Signal sourced from CPU)
Audio	Mic-In and Line-out, on board header (SAMTEC Connector )
DIO	16 GPIO, on board header (SAMTEC Connector)

Internal Expansion

M.2	1x M.2 2280 M key socket ( SATA III )
Mini PCIe	3x Full Size Mini-PCle ( PCle x1, USB 2.0), Supports mini-PCIe Frame Grabbers cards with video HD-SDI and PAL / NTSC
MXM	TYPE A : 82 × 70 mm & TYPE B : 82 x 105mm MXM GPU Module , up to 130W

Storage

Type	1x Standard SATA Ports for 2.5 inch or 3.5 inch Storage

Power

Power Input	2x 2-pin DC12V pluggable terminal block

Environment & Mechanical

Operating Temp.	-40°C to 85°C ( Only Carrier board)
Storage Temp.	-40°C ~ 85°C
Relative Humidity	0% RH – 95% RH (non-condensing) Storage : 10 ~ 90%
Dimension	Dimension : 200 x 125 mm

System

Discrete GPU	Graphic Cores	Memory Type/Size	AI TOPS*	Operating Temp.
NVIDIA RTX™ Embedded 5000 Ada	9728 CUDA / 304 Tensor	GDDR6 16GB	682	0~60°C
NVIDIA RTX™ Embedded 3500 Ada	5120 CUDA / 160 Tensor	GDDR6 12GB	369	0~60°C
NVIDIA RTX™ Embedded 2000 Ada	3072 CUDA / 96 Tensor	GDDR6 8GB	232	0~70°C

*AI TOPS Precision - FP8 for NVIDIA RTX™ Embedded Ada Generation.
