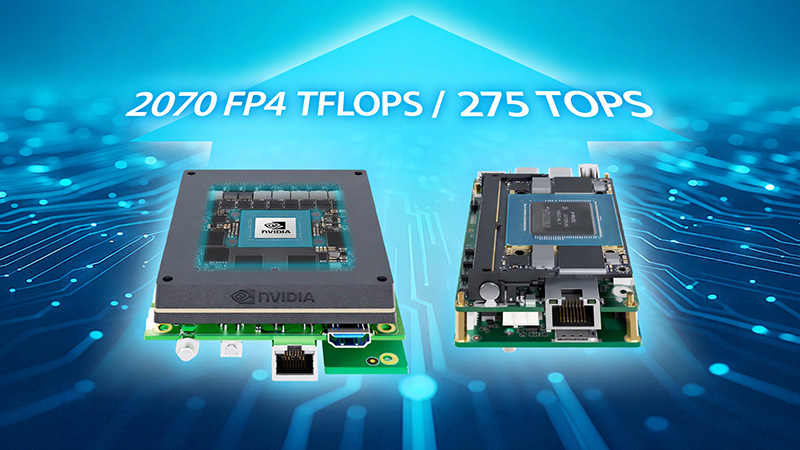

Arc delivers powerful AI computing within an ultra-compact form factor, enabling seamless integration into space- and weight-constrained robotic systems without sacrificing performance.
Lambortech delivers compact NVIDIA Jetson-based Edge AI platforms purpose-built for robotics—enabling sensor fusion, low-latency control loops, and modular I/O integration for real-world autonomy.
From humanoid robots to AMR/AGV and intelligent manipulators, our robotics-ready Edge AI designs support LiDAR, depth cameras, and multi-sensor perception—where deterministic response and compact integration matter.
Designed for robotics system integrators seeking scalable, deployable Edge AI platforms from lab to production.
Products
275/200 TOPS
Compact Edge AI for robotics perception & control
2070/1200 FP4 TFLOPS
Advanced Edge AI for robotics perception & control
Quick comparison to help choose the right Edge AI module for robotics perception and control.
| Item | ECM300-AGX | ECM400-Thor |
|---|---|---|
| NVIDIA Platform | Jetson AGX Orin 64GB/32GB | Jetson Thor 128GB/64GB |
| AI Performance | 275/200 TOPS | 2070/1200 FP4 TFLOPS |
| Dimension | 107 × 92 mm | 100 x 130 mm |
| PCIe Expansion | 1×M.2 2230 E Key PCIe Gen4*1/USB2.0/SDIO Slot 1×M.2 2230 M Key PCIe Gen4*4 Slot |
1×M.2 2230 E Key PCIe Gen4*1/USB2.0/SDIO Slot 1×M.2 2280 M Key PCIe Gen5×2 Slot 2x Custom High-speed connectors for external peripheral card (Up to PCIe Gen5x4 each) |
| MIPI | 16×MIPI CSI-2 Lanes (D-PHY 2.1 (40Gbps) 4×4 | 3×4+2×2 | 2×4+4×2 | 1×4+5×2 | 6×2 MIPI Lanes support MIPI camera, capture card |
16×MIPI CSI-2 Lanes (D-PHY 2.1 (40Gbps) 4×4 | 3×4+2×2 | 2×4+4×2 | 1×4+5×2 | 6×2 MIPI Lanes support MIPI camera, capture card |
| I/O Interfaces | Main Board 3-Axis Digital Accelerometer 3-Axis Digital Gyroscope 2×UART 1×I2C 1×SPI 2×PWM FAN 1×CAN Bus Daughter Board 3-Axis Magnetometer |
Main Board 2×CAN bus (Header) 2xI2C 2xSPI 2xGPIO 2xUART 1xPWM FAN 1x6-axis IMU (3-axis accelerometer + 3-axis gyroscope) Daughter Board 3-Axis magnetometer 3×USB3.2 Gen2 Type C (Shared 10G) 3×CAN bus (1 Shared with MB's CAN bus) 2×RS485 RTK support + GNSS antenna connector (Optional) |
Features
Arc delivers powerful AI computing within an ultra-compact form factor, enabling seamless integration into space- and weight-constrained robotic systems without sacrificing performance.
Arc supports LiDAR, depth cameras, ultrasonic sensors, and customizable I/O modules, enabling precise environmental perception and data fusion for intelligent decision-making.
With integrated 9-axis IMU sensing, Arc continuously analyzes motion and balance, allowing robots to maintain stability even in complex, dynamic environments

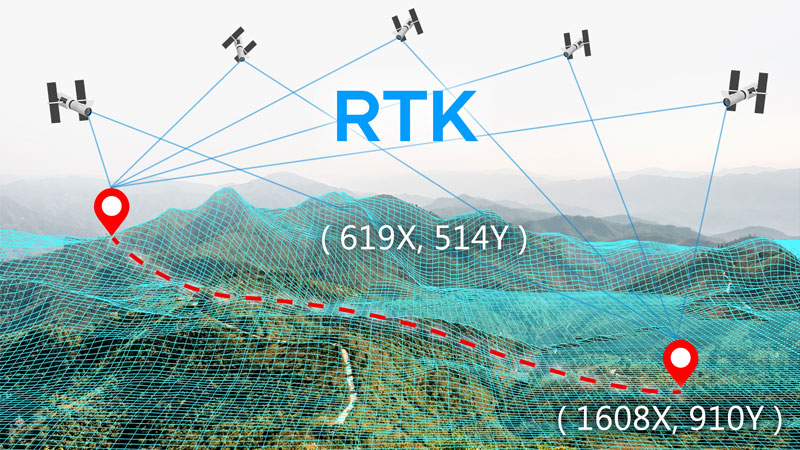

Optional RTK GNSS module delivers centimeter-level positioning accuracy with multi-constellation support, enabling precise outdoor navigation for autonomous vehicles and humanoid robots.
