ECM300-AGX

Highly Integrated AI Core, Provide 275 TOPS and Expandability

Powered by NVIDIA® Jetson AGX Orin™ up to 275 TOPS
3-Axis Digital Accelerometer, 3-Axis Digital Gyroscope and 3-Axis Magnetometer
1×M.2 E Key / 1×M.2 M Key
2×USB3.2 Gen2 Type-C + 2×USB3.2 Gen2 Type-A
CAN Bus / I2C / SPI / GPIO / PWM
Compact Design

System

CPU	NVIDIA Jetson AGX Orin™ 64GB 12-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 3MB L2 + 6MB L3 NVIDIA Jetson AGX Orin™ 32GB 8-core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3
GPU	NVIDIA Jetson AGX Orin™ 64GB 2048-Core NVIDIA Ampere Architecture GPU with 64 Tensor Cores NVIDIA Jetson AGX Orin™ 32GB 1792-Core NVIDIA Ampere Architecture GPU with 56 Tensor Cores
AI Performance	NVIDIA Jetson AGX Orin™ 64GB 275 TOPS NVIDIA Jetson AGX Orin™ 32GB 200 TOPS
System Memory	NVIDIA Jetson AGX Orin™ 64GB 64GB LPDDR5 NVIDIA Jetson AGX Orin™ 32GB 32GB LPDDR5

Interface

Storage	64GB eMMC 5.1 ( On NVIDIA Jetson AGX Orin™ Module)
Display Interface	1xHDMI2.0
Ethernet	1×RJ45 for 10/100/1000Mbps Ethernet DHCP Client
Expansion Slot	Main Board 1×M.2 2230 E Key PCIe Gen41/USB2.0/SDIO Slot 1×M.2 2230 M Key PCIe Gen44 Slot

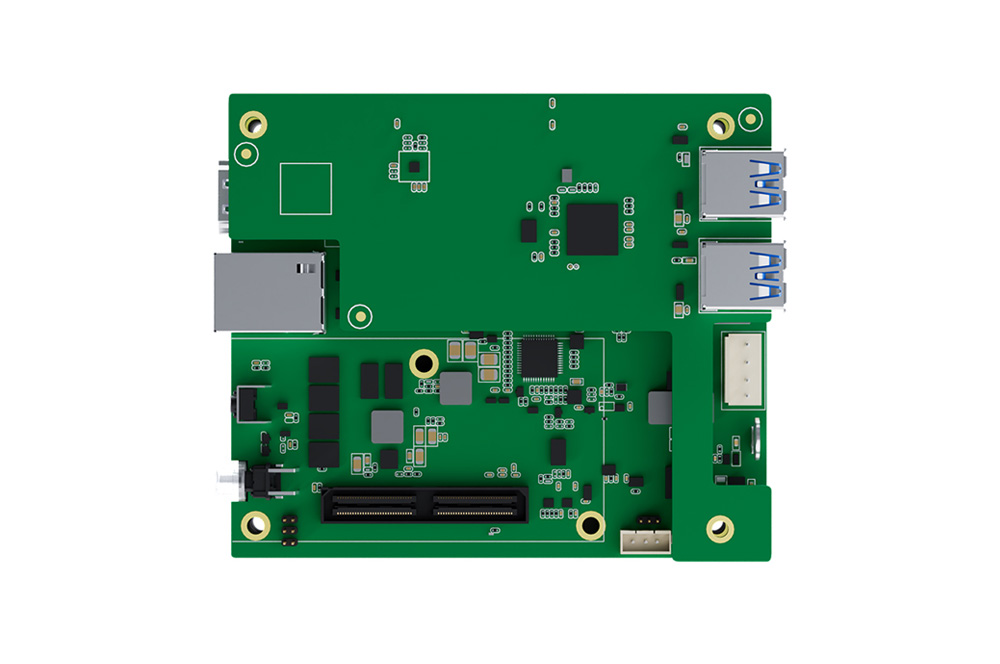

USB	Main Board 2×USB3.2 Gen2 (Type-C) Daughter Board 2×USB3.2 Gen2 (Type-A)
MIPI	16×MIPI CSI-2 Lanes (D-PHY 2.1, 4×4 \| 3×4+2×2 \| 2×4+4×2 \| 1×4+5×2 \| 6×2 MIPI Lanes, Support MIPI Camera, Capture Card)
Peripheral Communication	Main Board 3-Axis Digital Accelerometer 3-Axis Digital Gyroscope 2×UART 1×I2C 1×SPI 2×PWM FAN 1×CAN Bus Daughter Board 3-Axis Magnetometer
Misc. Features	Firmware Upgradable AutoPower (Pin Header)

Development

OS	Ubuntu: 20.04
Kernel	5.10.104-tegra or Higher
BSP	Linux for Tegra(L4T) R35.3.1 or Higher
SDK	JetPack 5.1.1 or Higher

Environment

Power Supply	DC input : 19~24V
Power Consumption	TBA
Operating Temp.	0~60°C with Airflow
Storage Temp.	-20~80°C

Mechanical

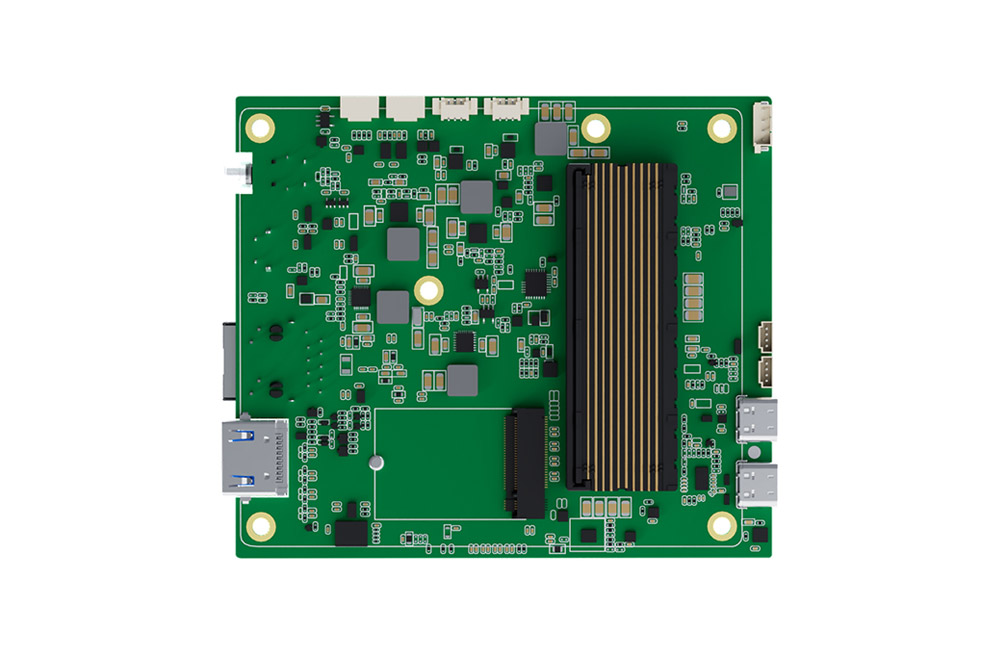

Main Board	107 x 92 mm

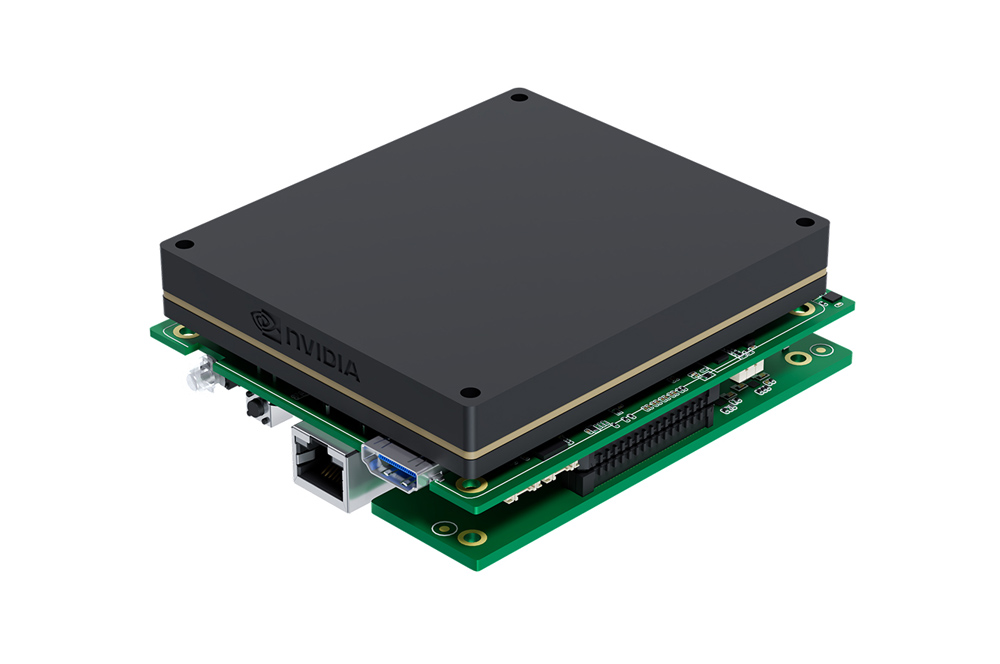

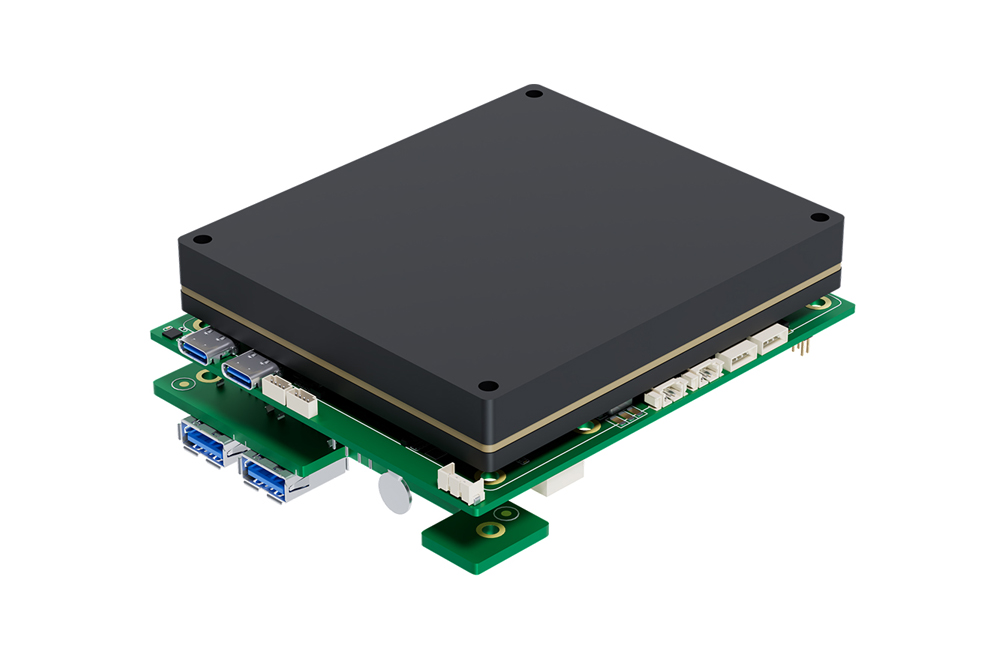

Main Board, Daughter Baord and Heatsink	107 x 92 x 47.18 mm

Video Feature

	NVIDIA Jetson AGX Orin™ 32GB	NVIDIA Jetson AGX Orin™ 64GB
Video Encode	AV1 (UHP) : 1×4K60 \| 3×4K30 \| 6×1080p60 \| 12×1080p30 H.265 (UHP) : 1×4K60 \| 3×4K30 \| 6×1080p60 \| 12×1080p30 H.264 (UHP) : 1×4K60 \| 2×4K30 \| 5×1080p60 \| 11×1080p30	AV1 (UHP) : 2×4K60 \| 4×4K30 \| 8×1080p60 \| 16×1080p30 H.265 (UHP) : 2×4K60 \| 4×4K30 \| 8×1080p60 \| 16×1080p30 H.264 (UHP) : 1×4K60 \| 3×4K30 \| 7×1080p60 \| 14×1080p30
Video Decode	AV1 (Main Profile) : 1×8K30 \| 2×4K60 \| 4×4K30 \| 7×1080p60 \| 15×1080p30 H.265 (Main, Main10) : 1×8K30 \| 2×4K60 \| 4×4K30 \| 9×1080p60 \| 18×1080p30 H.264 (Baseline, Main, High) : 1×4K60 \| 2×4K30 \| 5×1080p60 \| 11×1080p30 VP9 (Profile 0, Profile 2) : 1×4K60 \| 3×4K30 \| 7×1080p60 \| 15×1080p30	AV1 (Main Profile) : 1×8K30 \| 3×4K60 \| 6×4K30 \| 9×1080p60 \| 18×1080p30 H.265 (Main, Main10) : 1×8K30 \| 3×4K60 \| 7×4K30 \| 11×1080p60 \| 22×1080p30 H.264 (Baseline, Main, High) : 1×4K60 \| 3×4K30 \| 6×1080p60 \| 13×1080p30 VP9 (Profile 0, Profile 2) : 1×8K30 \| 3×4K60 \| 6×4K30 \| 9×1080p60 \| 18×1080p30

SDK

QCAP	Capture High Performance Renderer Image Snapshot Deinterlace, Alpha Blending Engine Auto Signal Detection 2D/3D Video, Audio and VANC Streams Capture
	Record Encrypt / Sync / Clone / Recording Time-Shifting / Rewind / Pre-Event / Recording Multi-Streams ( 3D ) Recording Animation Transition Effect Video Cropping, Scaling and Alpha Blending Engine
	Stream 2D/3D Universal Stream Client 2D/3D Multi-Streams Stream Server RTSP, RTMP, HLS, SRT, TS, WebRTC. NDI-HX (), Full NDI (), Dante AV-H () Animation Transition Effect Video Cropping, Scaling and Alpha Blending Engine Separate License Required
QDEEP	AI SDK Integrated Multiple Algorithms and Deep-Learning Models in Various Fields of Applications Face Recognition Objects Detection Objects Segment Optical Character Recognition License Plate Recognition Customizable Video AI Functions Upon Request
