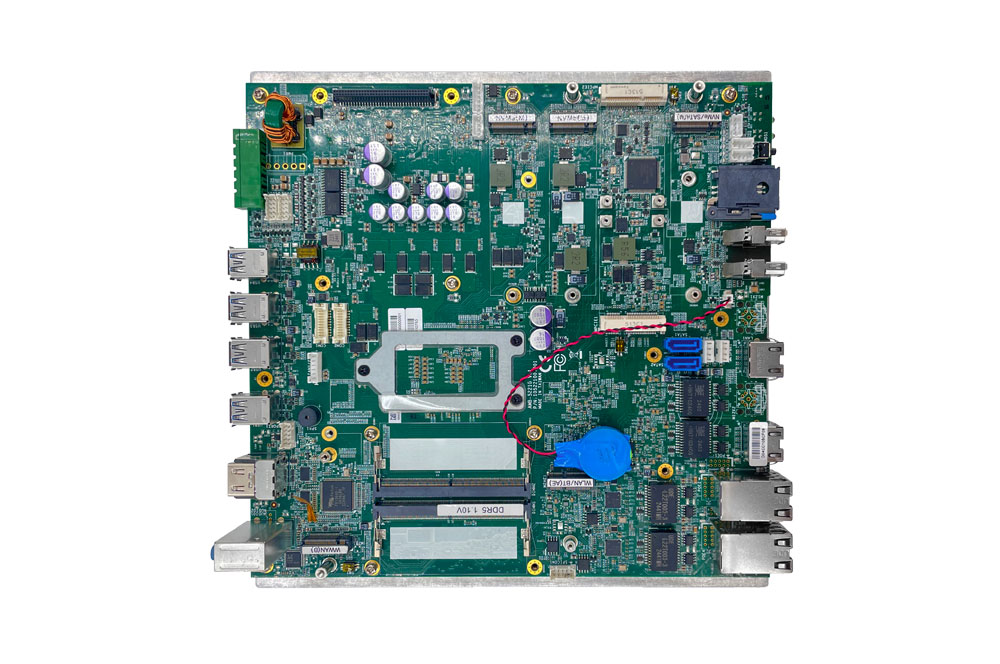

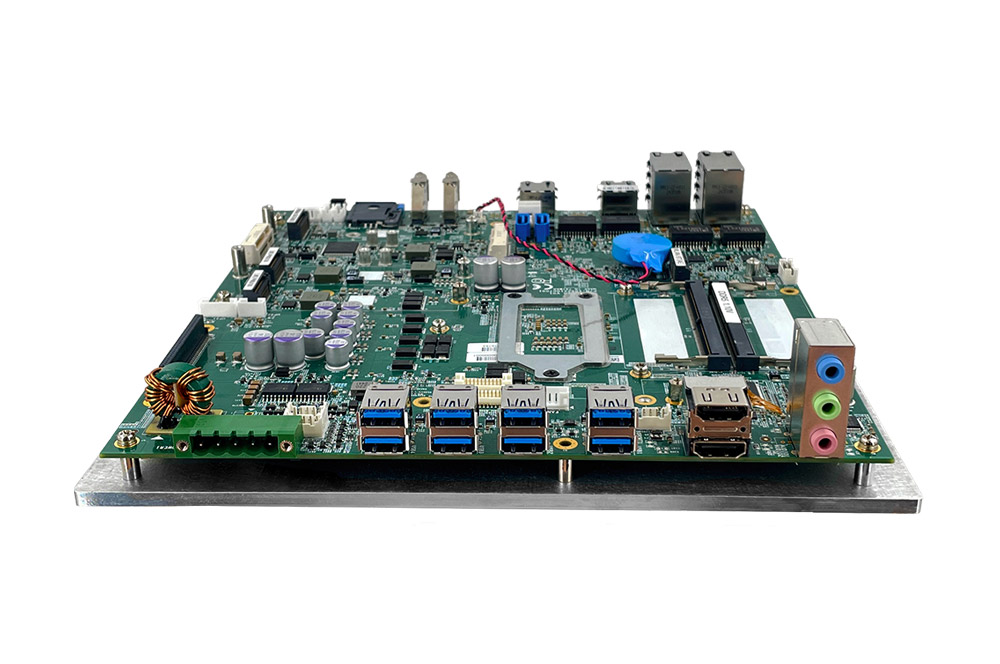

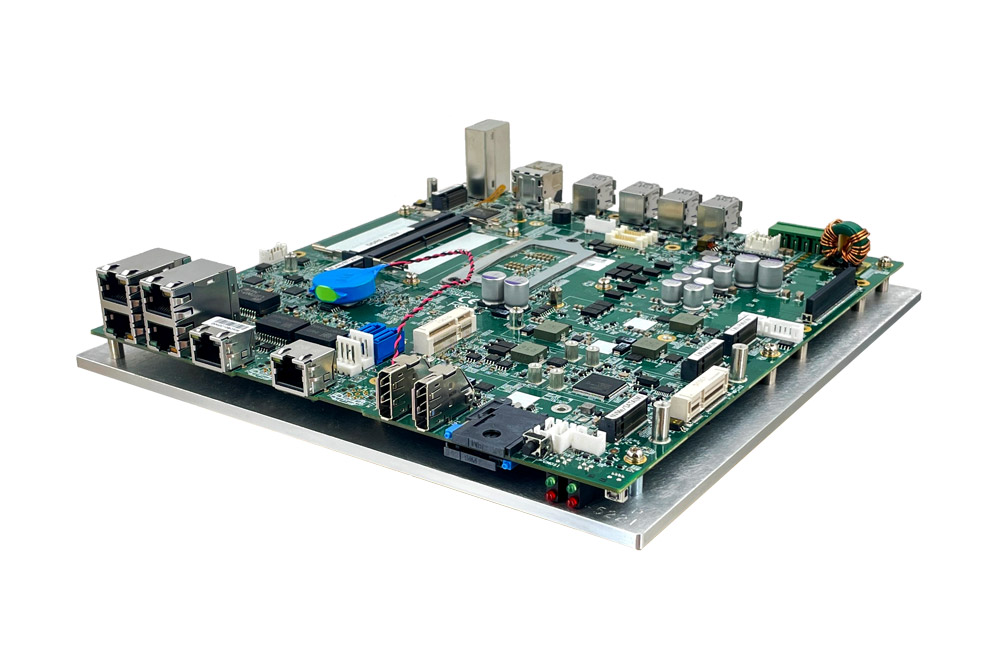

EMB-600 Edge AI Board

System

CPU	Intel® Core™ (14th gen) i9-14900T 24C/32T processor Intel® Core™ (14th gen) i7-14700T 20C/28T processor Intel® Core™ (14th gen) i5-14500T 14C/20T processor
Graphics	Processor-integrated GPU - Intel® UHD Graphics 770 Optional discrete GPU - NVIDIA RTX™ Embedded 2000 Ada / 3500 Ada / 5000 Ada, Intel® Arc™ A370E
Chipset	R680E
Memory	2 x DDR5-5600 SO-DIMM up to 96GB (ECC support with ECC DRAM)
Security	TPM 2.0
Watchdog	Auto reset for unresponsive system (custom 1-255 sec/min settings in BIOS)

Interface

Video	Without discrete GPU - 2 x HDMI® up to 3840 x 2160 @ 60Hz as speci ed in HDMI 2.0b With discrete GPU - Additional 2 x DP++ up to 7680 x 4320 @ 60Hz
Audio	1 x Line-out, 1 x Line-in, 1 x Mic-in
Ethetnet	2 x 10GbE (Marvell AQC113) via RJ-45 (optional M12 X-code) 4 x 2.5GbE (Intel I226) via RJ-45 (optional PoE+ and M12 X-code) * ETH3 supports Intel® AMT ** PoE supports 25.5W per port with total power budget: 120W
USB	8 x USB 3.2 Gen 2
DIO	8 x DI (DC 5-60V), 8 x DO (DC 5V/100mA)
COM	2 × RS-232/422/485

Internal Expansion

M.2	1 x M.2 3042/3052 Key B for WWAN with dual SIM support 1 x M.2 2230 Key E for Wi-Fi/BT * Thermal solution is required for M.2 5G module
Mini PCIe	2 x Mini PCIe (full-size)
MXM	Type A/B : 1 x (PCIe Gen5 x16)

Storage

Type	1 x M.2 2280 Key M for NVMe/SATA SSD 1 x M.2 2280 Key M for NVMe SSD 2 x SATA for SATA SSD/HDD

Software

Operating System	Windows 11 IoT Enterprise LTSC Ubuntu 22.04 LTS

Power

Power Input	DC 9-60V (nominal power input DC 12V/24V/48V) via 5-pin terminal block * Nominal power input of DC 24V or above is required for system with discrete GPU and PoE
Power Protection	OCP, OVP, surge protection, reversed polarity protection
Power Management	Ignition detection, Smart Power Management
RTC Battery	High-capacity coin cell battery for RTC

Mechanical

Dimension	290 x 250 x 55 mm (11.42 x 9.84 x 2.17 in.)
Weight	1.70 kg (3.75 lb)
Mounting	Wall mounting

Environment

Operating Temp.	-40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s air ow * Operating temperature varies by accessories installed. **Operating temperature is based on thermal solution applied.
Storage Temp.	-40°C ~ 80°C (-40°F ~ 176°F)
Relative Humidity	10% RH – 90% RH (non-condensing)
Vibration	IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis MIL-STD-810H, Method 514.8, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)
Certification	CE, FCC Class A, UKCA, E-Mark, EN 50155, EN 45545-2 (R25)
