- NVIDIA® Jetson Orin™ NX SoM with 1024 CUDA Cores
- IP66 Design (Waterproof and Dustproof) for Harsh Environment
- 2 x GMSL-2 Cameras Support
- 2 x Ethernet with PoE Support
- Optional Backup Battery for Emergency
| CPU | NVIDIA® Jetson Orin™ NX 16GB – 100 TOPS (1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5) NVIDIA® Jetson Orin™ NX 8GB – 70 TOPS (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5) |
|---|---|
| Security | Platform Security Controller (PSC), Security Engine (SE) |
| Network | 1 x Intel® 2.5GbE, 1 x SoM Built-in GbE |
| Watchdog | The self-reset mechanism for unresponsive system |
| Video | 1 x HDMI Type-A output supports 4K resolution (with a cover) |
|---|---|
| Audio | 1 x HD Audio from the HDMI |
| Ethernet | 2 x M12 X-coded connectors |
| PoE | 2 x PoE PSE Class 3 (15 watts) |
| Camera | 2 x GMSL-2 via FAKRA connectors |
| CAN Bus | 1 x CAN FD via M8 connector |
| USB | 1 x USB 3.2 (with a cover) |
| DIO | 3 x DI, 4 x DO (12VDC/100mA) via M8 connector |
| Serial Port | 1 x RS-232/422/485 via M8 connector |
| Mgmt. Port | 1 x USB Type-C for System Recovery (Device only) |

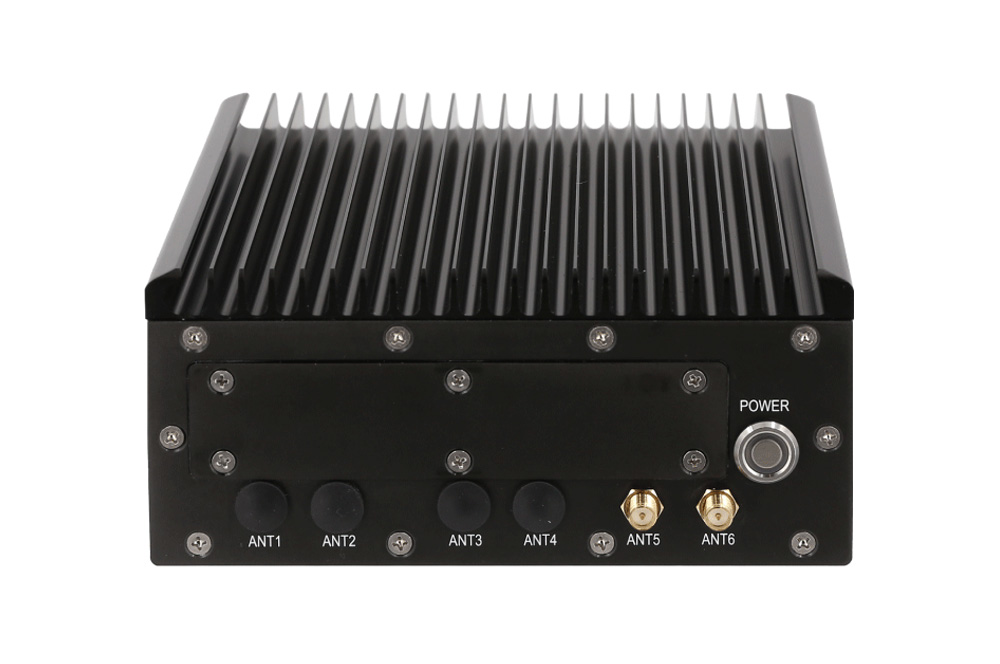

| Antenna | 6 x Antenna holes with protection caps |
| M.2 | 1 x M.2 3042/52 Key B supports WWAN w/ Dual Nano SIM 1 x M.2 2230 Key E supports Wi-Fi/BT |
|---|
| Type | 1 x M.2 2280 Key M supports NVMe SSD (Pre-installed system BSP) |
|---|
| Operating System / SDK | NVIDIA® JetPack 6.2 above, including Jetson Linux, and NVIDIA® development tools |
|---|
| Power Input | DC 9V-60V for 12/24/48V via M12 K-coded |
|---|---|
| Power Protection | 1OCP, OVP, Surge Protection, and Reversed Polarity Protection |
| Power Management | Supports Smart Power Managemen |
| RTC Battery | High-capacity coin cell battery for RTC |
| Battery (UPS) | Backup battery for system power backup |
| Dimension | 150 (L) x 138 (W) x 66 (H) mm (6.0 x 5.5 x 5.6 inch) |
|---|---|
| Weight | 1.78kg |
| Construction | Aluminum Alloy |
| Mounting | Wall Mount |
| Thermal Design | Fanless Passive Cooling Design |
| Ingress Protection | IP66 |
| Operating Temp. | -25°C ~ 60°C (-13°F ~ 140°F), with SSD, ambient w/ air flow 0.6m/s (ONX16 model) -25°C ~ 70°C (-13°F ~ 158°F), with SSD, ambient w/ air flow 0.6m/s (ONX8 model) |
|---|---|
| Storage Temp. | -40°C ~ 80°C (-40°F ~ 176°F) |
| Relative Humidity | 10% RH – 90% RH (non-condensing) |
| Relative Humidity | Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis MIL-STD-810G – Method 514.6, Procedure I, Category 4 |
| Vibration (with SSD) | MIL-STD-810G – Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD |
| Certification | CE, FCC Class A, UKCA, E-mark, EN50155, EN45545-2 (R25) |
