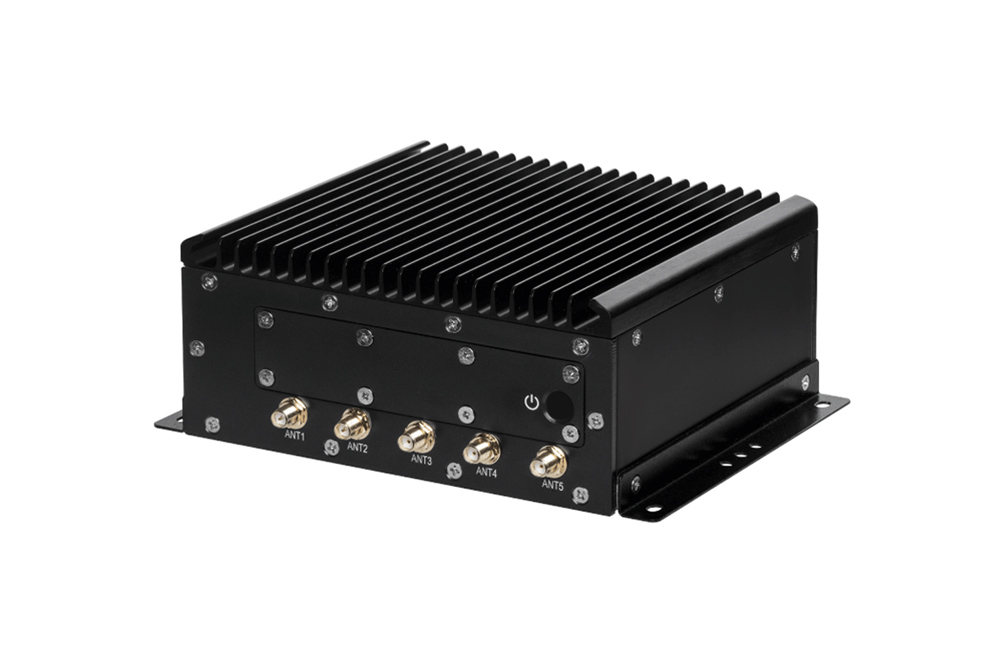

IP66 Edge

System

CPU

NVIDIA® Jetson Orin™ NX 16GB – 100 TOPS (1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5) NVIDIA® Jetson Orin™ NX 8GB – 70 TOPS (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5) NVIDIA® Jetson Orin™ Nano 8GB – 40 TOPS (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8GB LPDDR5) NVIDIA® Jetson Orin™ Nano 4GB – 20 TOPS (512 CUDA cores + 6-cores ARM Cortex-A78AE CPU + 4GB LPDDR5)

Security

Platform Security Controller (PSC), Security Engine (SE)

Interface

Ethetnet	M12 X-coded for 1 x 2.5GbE & 1 x GbE
USB	2 x USB 3.2 Type-A with cover * Two ports share 10Gbps bandwidth
Video Output	1 x HDMI 2.1 Type-A Supports 3840 x 2160@30Hz
Audio	1 x HD Audio from the HDMI
Serial Port	1 x DB-9 for RS-232/422/485
CAN Bus	1 x CAN FD
GPIO	1 x DB-9 for 4 x DI / 4 x DO
Mgmt. Port	1 x USB Type-C for System Recovery (Device only)
SIM Card	1 x Nano SIM Card Slot
Antenna	5 x Pre-cut Holes for External SMA Antenna
RTC Battery	High-capacity Coin Cell Battery for RTC
UPS	UPS for System Power Backup

Internal Expansion

M.2	1 x M.2 2230 Key E slot, 1 x M.2 3042/52 Key B slot
mPCIe	1 x mPCIe Full-size slot (USB 2.0 supported)

Storage

Type	1 x Pre-Installed NVMe SSD (240GB/480GB)

Software

Operating System / SDK	NVIDIA® JetPack including Jetson Linux, NVIDIA® development tools

Power

Power Input	1 x M12 K-coded for DC-in 9~ 60V Support Smart Power Management, OCP, and OVP

Mechanical

Dimension	150 mm (L) x 135 mm (W) x 66 mm (H)
Weight	1,400g
Construction	Aluminum Alloy
Mounting	Wall Mount
Thermal Design	Fanless Passive Cooling Design
Ingress Protection	IP66

Environment

Relative Humidity	10% RH – 90% RH (non-condensing)
Operating Temp.	-25°C ~ 70°C w/0.6 m/s airflow (for barebone system) *Operating temp. varies by accessories installed.
Storage Temp.	-40°C ~ 80°C
Certification	CE, FCC Part-15 Class A, E-Mark, EN50155, EN45545 (R25)
