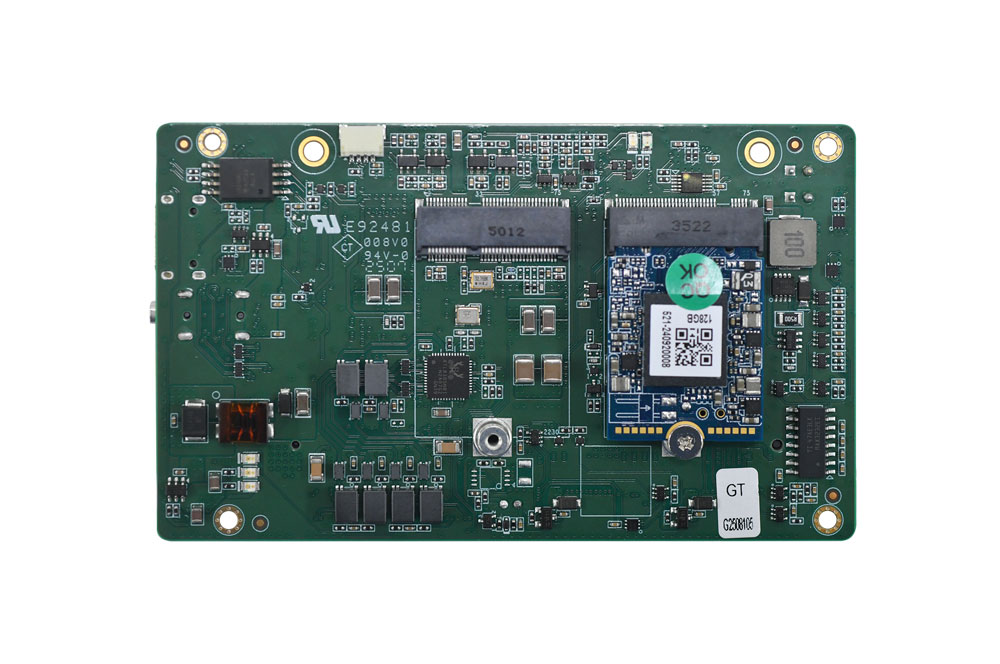

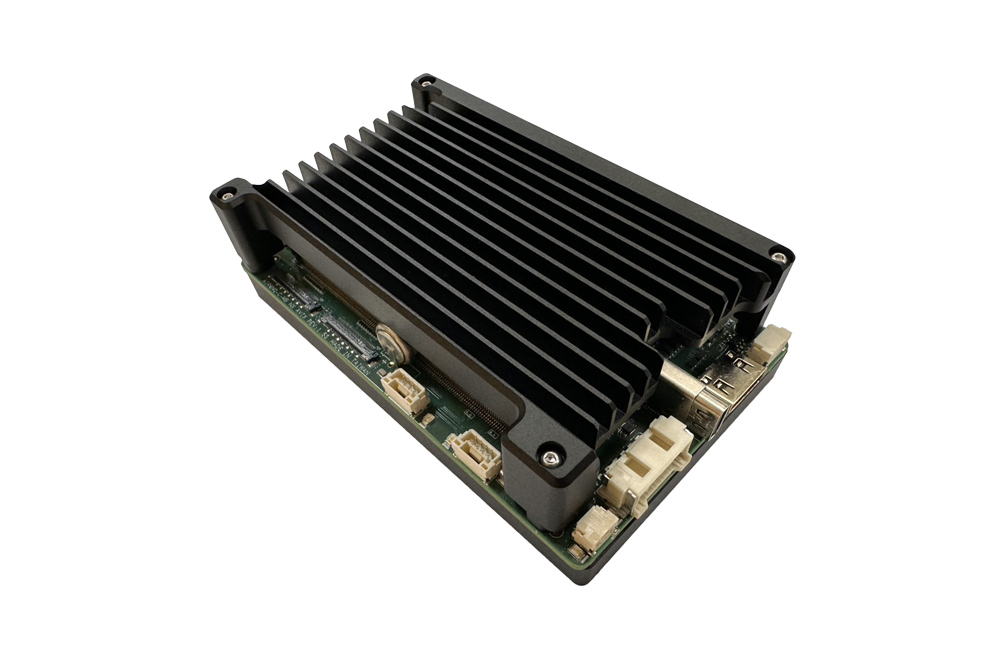

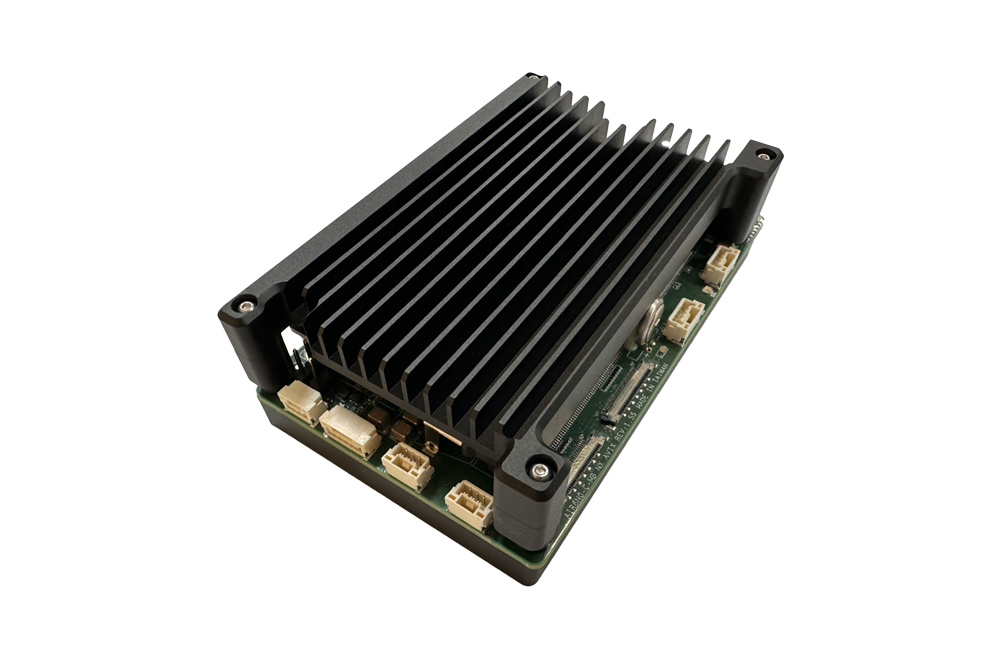

ECM001 Series

Compact AI Edge Module for UAV Onboard Computing

Powered by NVIDIA® Jetson Orin™ NX Super up to 157 TOPS
2× M.2, M Key PCIe Gen 4×2 and E Key PCIe Gen 4×1
Support SDVoE
1x USB3.2 Gen2
2× 4MIPI CSI-2 Lanes
2x 10/100M Ethernet (ECM001 only)
2x 1G Ethernet (ECM001-GIGA only)
RS232 / UART / I2C / SPI / CAN Bus

System

CPU	NVIDIA Jetson Orin™ NX 16GB Super 8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3
GPU	1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
AI Performance	157 TOPS
System Memory	16GB LPDDR5

Interface

Storage	Supports External NVMe
Display Interface	1xMini HDMI2.0
Ethernet	2×BM04B-GHS-TBT Connector for 10/100Mbps Ethernet (ECM001) 2×Hirose IX61G2-A-10P Connector for 1Gbps Ethernet (ECM001-GIGA) DHCP Client
Expansion Slot	M.2 1×M.2 2230 M Key PCIe Gen4×2 Slot 1×M.2 2230 E Key PCIe Gen4×1 Slot
USB	1xUSB3.2 Gen2 (Type-C)
MIPI	2×4MIPI CSI-2 Lanes (KEL USL00-30L)
Perherial Communication	1×RS232 (BM03B-GHS-TBT Connector) 1×UART (BM03B-GHS-TBT Connector) 1×I2C (SM03B-GHS-TB Connector) 1×SPI (SM03B-GHS-TB Connector) 1×CAN Bus (SM03B-GHS-TB Connector)
Misc. Features	Firmware Upgradable AutoPower (Pin Header)

Environment

Development Environment	OS : Ubuntu: 20.04 Kernel : 5.10.104-tegra or Higher BSP : Linux for Tegra(L4T) R35.3.1 or Higher SDK : JetPack 5.1.1 or Higher
Environment	Power Supply DC input : 9~36V (Molex(2.0mm) 5024940670 6 pin Connector 3A(26AWG)) Power Output DC output : 5V/1A (SM02B-GHS-TB) Operating Temp. : 0~60°C with Airflow Storage Temp. : -20~80°C

Mechanical

Dimension	100mm x 60mm
Weight	TBD

Video Feature

Video Encode	AV1 (UHP) : 1×4K60 \| 3×4K30 \| 6×1080p60 \| 12×1080p30 H.265 (UHP) : 1×4K60 \| 3×4K30 \| 6×1080p60 \| 12×1080p30 H.264 (UHP) : 1×4K60 \| 2×4K30 \| 5×1080p60 \| 11×1080p30
Video Decode	AV1 (Main Profile) : 1×8K30 \| 2×4K60 \| 4×4K30 \| 9×1080p60 \| 20×1080p30 H.265 (Main, Main10) : 1×8K30 \| 2×4K60 \| 4×4K30 \| 9×1080p60 \| 18×1080p30 H.264 (Baseline, Main, High) : 1×4K60 \| 2×4K30 \| 5×1080p60 \| 11×1080p30 VP9 (Profile 0, Profile 2) : 1×4K60 \| 3×4K30 \| 7×1080p60 \| 15×1080p30

SDK

QCAP	Capture High Performance Renderer Image Snapshot Deinterlace, Alpha Blending Engine Auto Signal Detection 2D/3D Video, Audio and VANC Streams Capture
	Record Encrypt / Sync / Clone / Recording Time-Shifting / Rewind / Pre-Event / Recording Multi-Streams ( 3D ) Recording Animation Transition Effect Video Cropping, Scaling and Alpha Blending Engine
	Stream 2D/3D Universal Stream Client 2D/3D Multi-Streams Stream Server RTSP, RTMP, HLS, SRT, TS, WebRTC. NDI-HX (), Full NDI (), Dante AV-H (*) Animation Transition Effect Video Cropping, Scaling and Alpha Blending Engine 1×M.2 2230 E Key PCIe Gen4×1 Slot
QDEEP	AI SDK Integrated Multiple Algorithms and Deep-Learning Models in Various Fields of Applications Face Recognition Objects Detection Objects Segment Optical Character Recognition License Plate Recognition Customizable Video AI Functions Upon Request
