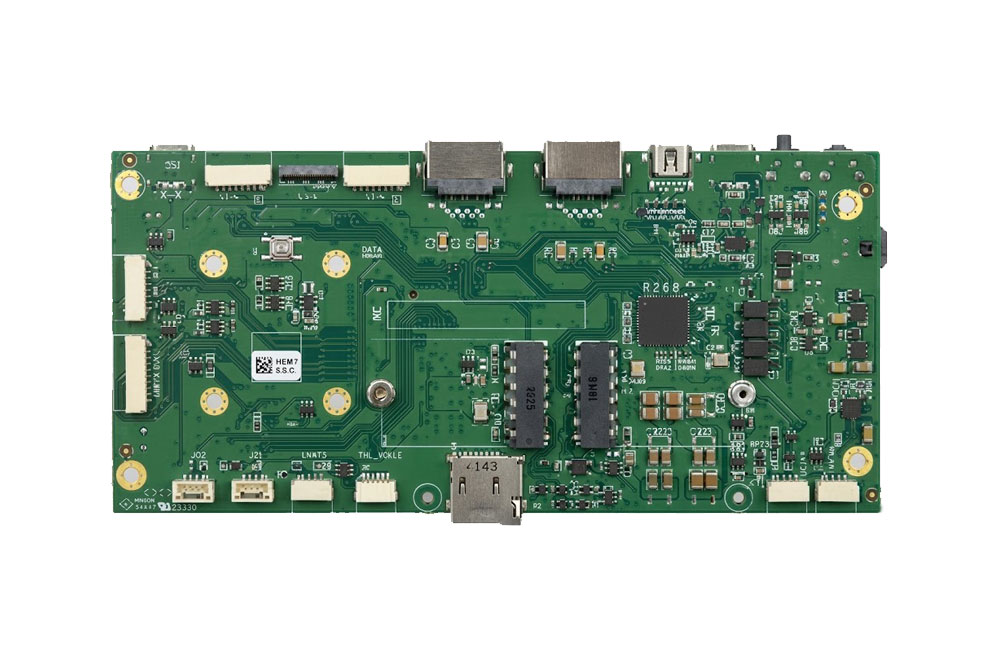

Drone / UAV Edge AI

System

SOM	Orin NX Super 16GB	Orin NX Super 8GB	Orin Nano Super 8GB	Orin Nano Super 4GB
CPU	8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3	6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3	6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3
GPU	1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores			512-core NVIDIA Ampere Architecture GPU with 16 Tensor Cores
AI Performance	157 TOPS	117 TOPS	67 TOPS	34 TOPS
System Memory	16GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 102GB/s	4GB 128-bit LPDDR5 51GB/s

Interface

Storage	Supports External NVMe Micro SD
Display Interface	1x Mini DP
Ethernet	2×RJ45 for 10/100/1000Mbps Ethernet DHCP Client
Expansion Slot	1×M.2 2230 M Key PCIe Gen4×1 Slot (Nano: Gen3×1) 1×M.2 2230 M Key PCIe Gen4×2 Slot (Nano: Gen3×2)
USB	1x USB3.2 Gen2
MIPI	4×2MIPI CSI-2 Lanes ( D-PHY 2.1, Support MIPI Camera, Capture Card )
Perherial Communication	1×I2C 1×UART 10 Pin Header 1×USB2.0 4×GPIO
Misc. Features	Firmware Upgradable

Eevelopment Environment

JetPack	6.2 or Higher

Environment

Power Supply	DC input: 12~36V
Power Consumption	TBA
Operating Temp.	0~60°C with Airflow
Storage Temp.	-20~80°C
Certification	CE, FCC

Mechanical

Dimension	157mm x 75mm
Weight	TBA
