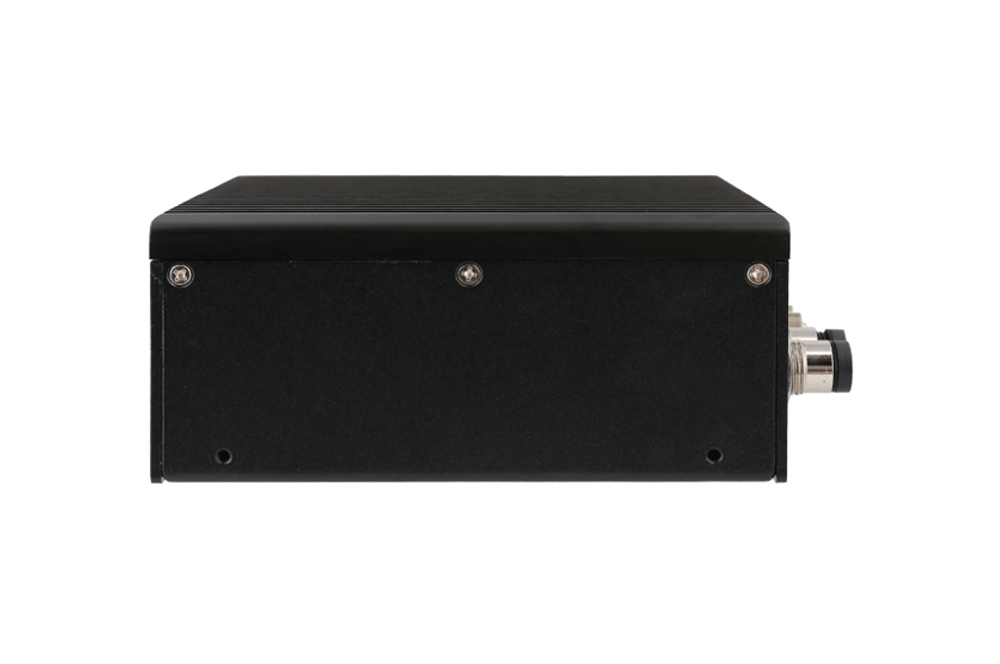

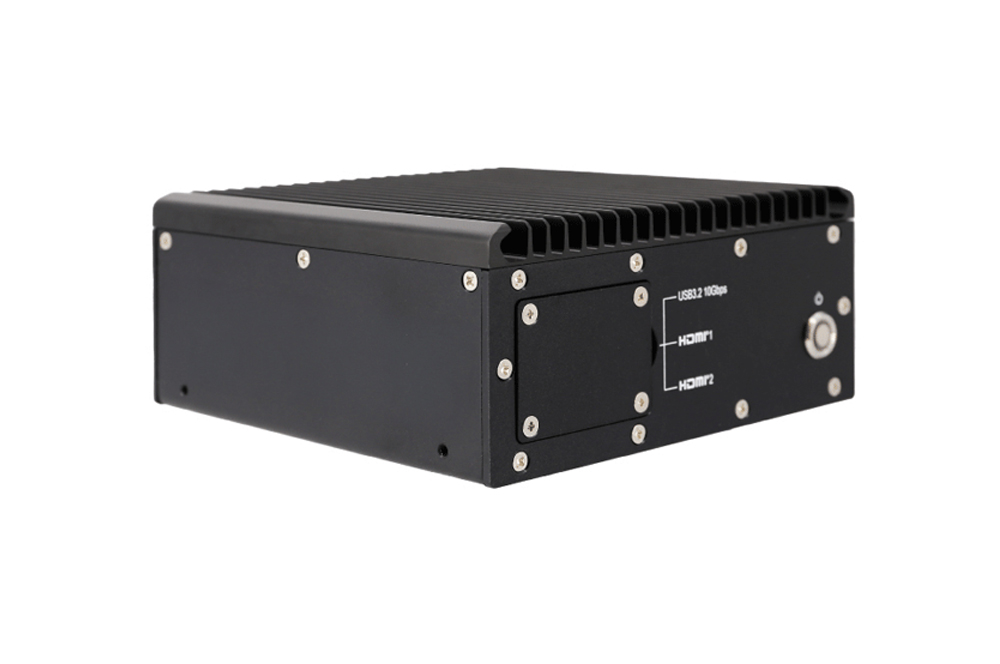

IP66 Edge

System

CPU	AMD Ryzen™ Embedded R2312 2C/4T Processor
Graphics	CPU Built-in Graphics AMD Radeon™ Graphics
Memory	1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM)
Security	TPM 2.0
Watchdog	System reset 1 ~ 255 sec. or min. settings in BIOS

Interface

Video	2 x HDMI® supports 4K@60Hz as specified in HDMI 2.0b
Ethetnet	2 x GbE* from Marvell Ethernet Switch w/ PoE (PSE Class 3: 15W) via M12 X Code * Share with 1GbE bandwidth; Power budget: 30W
USB	2 x USB 3.2 Gen 2 (10Gbps) w/o IP66 2 x USB 2.0 w/ M8 A Code
DIO	3 x DI (9-36VDC), 4 x DO (5V, 100mA) w/ M8 A Code

Internal Expansion

M.2	1 x M.2 3042/52 Key B supports USB 3.2 WWAN w/ Dual SIM 1 x M.2 2230 Key E supports PCIe and USB2.0 Wi-Fi/BT

Storage

Type	1 x M.2 2280 Key M supports NVMe or SATA SSD

Software

Operating System	Windows 10 IoT Enterprise 64bit LTSC Windows 11 IoT Enterprise Ubuntu 20.04 LTS 64bit Ubuntu 22.04 LTS 64bit

Power

Supply Input	DC-IN 9 – 36V Input (Nominal Power Input 12V or 24V)
Power Protection	Over voltage and reverse polarity protection

Mechanical

Dimension	150(L) x 150(W) x 66(H) mm
Weight	2.0Kg
Construction	Aluminum Alloy
Mounting	Wall Mount
Ingress Protection	IP66

Environment

Operating Temp.	-30 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system)
Storage Temp.	-40°C ~ 80°C
Relative Humidity	10 ~ 90% @ 40°C (non-condensing)
Certification	CE, FCC Class A, UKCA, EN 50155
