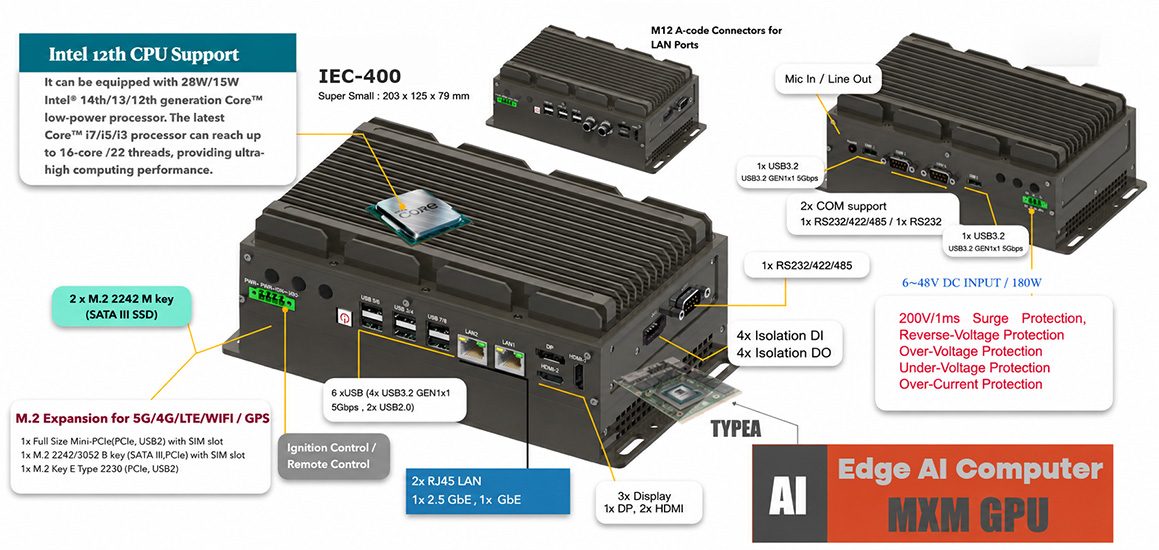

IEC-400 is a compact industrial Edge AI computer designed for space-constrained AI deployments. Powered by Intel® 13th/12th Gen Core™ processors and supporting NVIDIA RTX™ Ada Generation MXM GPU modules, IEC-400 delivers high-performance AI computing with scalable GPU acceleration up to 321 TOPS. The system features dual LAN, USB, serial communication, isolated DIO, dual SATA SSD support, and flexible 4G/5G/Wi-Fi expansion options. With a compact 203 x 125 x 79 mm form factor, wide 6–48V DC input, and rich NVIDIA software ecosystem support, IEC-400 is an ideal platform for machine vision, robotics, intelligent transportation, and industrial Edge AI applications.
System
| CPU |
Intel® 13th/ 12th-Gen Core™ i7/i5/i3 ( U_15W_P_28W ) |
| Graphics |
NVIDIA RTX40 Ada Series and RTX2000 Ada or other MXM GPU module up to 321 TOPS |
| Memory |
Max. Capacity : 64GB DDR5 with 2x SO-DIMM |
Interface
| Display |
3x Display (1x Display Port, 2x HDMI) |
| Audio |
1x 3.5mm jack for Mic-In and Line-out |
| Ethernet |

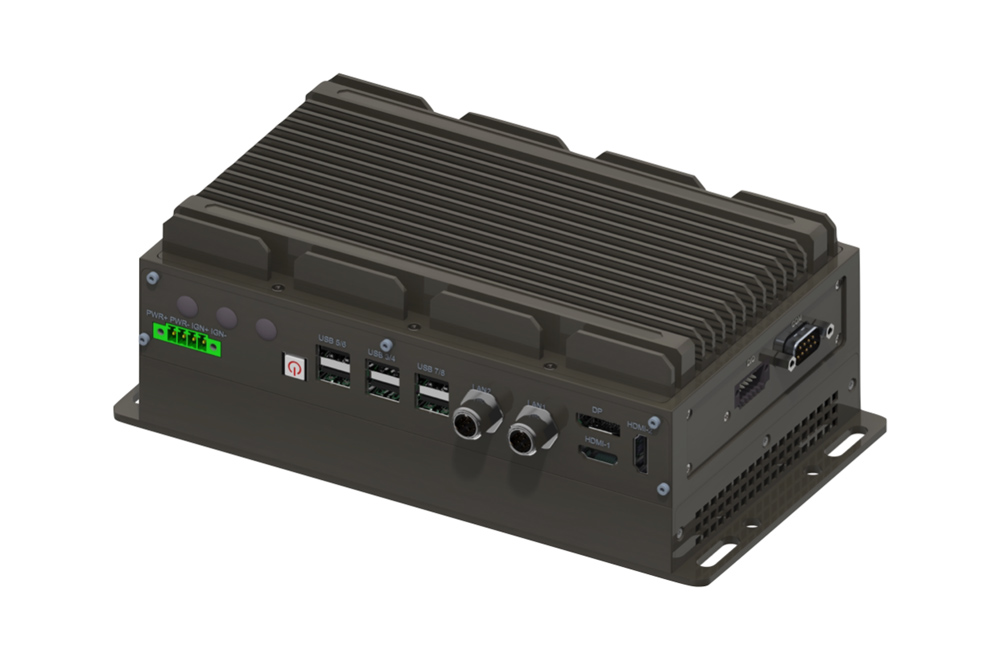

1x 2.5 GbE , 1x GbE LAN Ports (optional M12 A-coded) |
| USB |
6x USB 3.2 Gen1, 2x USB 2.0 |
| DIO |
8x Isolation DIO (4x Isolation DI , 4x Isolation DO) |
| COM |
2x RS232/422/485, 1x RS232 |
Internal Expansion
| M.2 |
1x M.2 2242/3052 M-B key with SIM slot, support 4G/5G
1x M.2 Key E Type 2230 for WIFI/BT/GPS |
| Mini PCIe |
1x Full Size Mini-PCIe with SIM slot, support 4G/5G |
| MXM |
TYPE A : 82 x 70 mm MXM GPU Module |
Storage
| Type |
2x M.2 2242 M key (SATA III SSD) , Support Raid 0/1
(1x M.2 2242 share with M.2 3052) |
Power
| Power Input |
1x 3-pin pluggable terminal block for 6~48V DC Input |
| Power Protection |
200V/1ms Surge Protection, Reverse-Voltage, Over-Voltage, Under-Voltage, Over-Current Protection |
| Power Button |
1 |
| Ignition Control |
1x 4-pin pluggable terminal block for Ignition/Remote |
Mechanical
| Dimension |
203(W) x 125(D) x 79(H) mm |
| Weight |
1.95 Kg |
| Mounting |
Wall mounting |
Environment
| Operating Temp. |
-40°C ~ 70°C(According to TDP & TGP ) |
| Storage Temp. |
-40°C ~ 85°C |
| Relative Humidity |
10% RH – 90% RH (non-condensing) |
| Vibration |
MIL-STD-810H, Method 514.8, Category 4 |
| Shock |
MIL-STD-810H, Method 516.8, Procedure I |
| Certification |
CE/FCC Class A
EN 55032 & EN 55035 , E-Mark / EN50155 / EN45545-2 by request |
