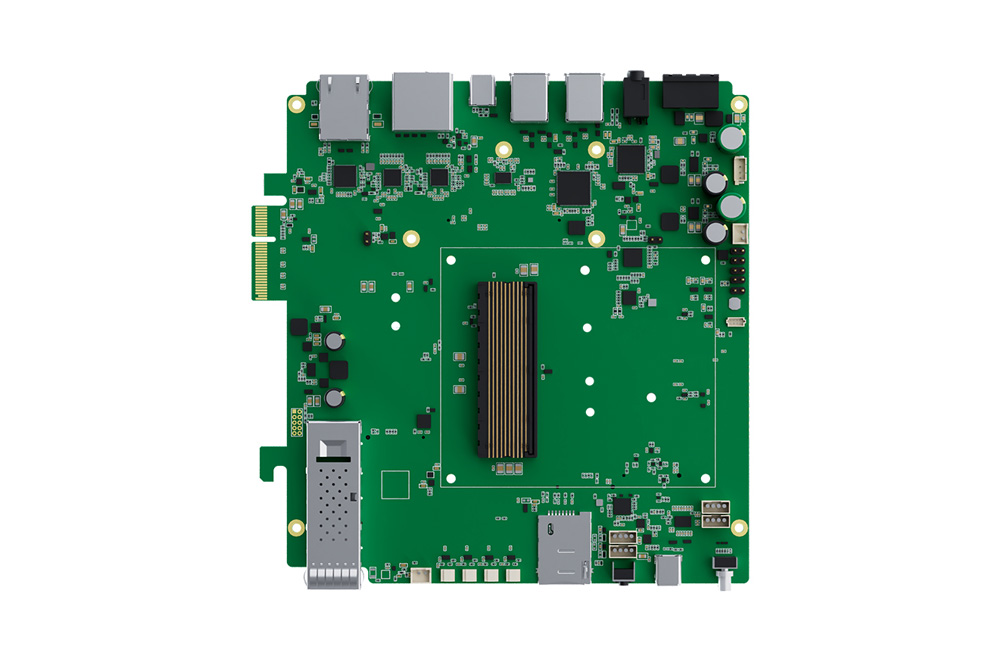

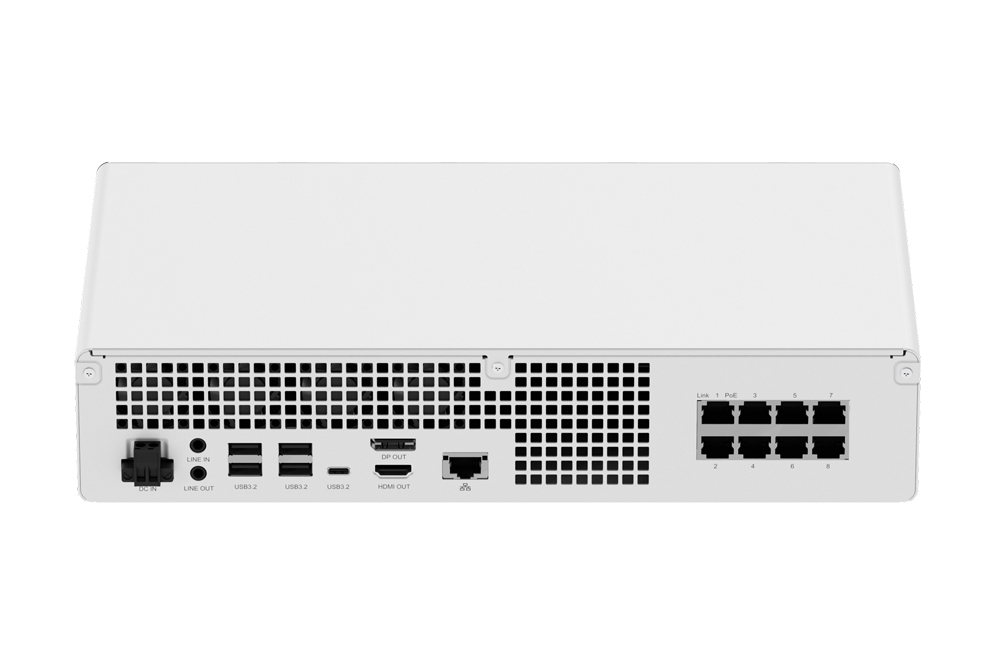

AVW-2000 AI Vision Workstation

System

SOM	NVIDIA Jetson Thor™ T5000 NVIDIA Jetson Thor™ T4000
CPU	NVIDIA Jetson Thor™ 128GB 14-Core ARM Neoverse V3AE 64-bit CPU
	NVIDIA Jetson Thor™ 64GB 12-Core ARM Neoverse V3AE 64-bit CPU
GPU	2560 NVIDIA CUDA cores | 96 5th Tensor cores 1536 NVIDIA CUDA cores | 64 5th Tensor cores
AI Performance	Up to 2070 / 1200 FP4 TFLOPs
System Memory	128 / 64 GB LPDDR5X 273 GB/s

Interface

Storage	1×M.2 2280 M-key NVMe for OS storage 2×2.5”SATA HDD for data storage
Display Interface	1×HDMI2.0 (Up to 4K60), 1×DP1.4 (Up to 4K60)
Ethernet	1×QSFP28 for 100 / 75Gbps Ethernet 1×RJ45 for 5Gbps Ethernet DHCP Client
Expansion Slot	M.2 1×M.2 2280 M Key PCIe Gen4×2 Slot (for OS) 1×M.2 2230 E Key PCIe Gen4×1/USB2.0/SDIO Slot 1×M.2 2242/3042/3052 B Key USB3.2 Gen1 Slot
USB	4×USB3.2 Gen2 (Type-A) 2×USB3.2 Gen2 (Type-C)
Audio	1×3.5mm Line Out 1×3.5mm MIC in
Fan	1×CPU Fan 4×3010 System FANs
Misc. Features	Firmware Upgradable AutoPower (Pin Header)

Video Feature

Video Encode	NVIDIA Jetson Thor™ 128GB H.265 (UHP) ．6×4K60 | 12×4K30 | 26×1080p60 | 54×1080p30 H.264 (UHP) ．6×4K60 | 12×4K30 | 24×1080p60 | 48×1080p30
	NVIDIA Jetson Thor™ 64GB H.265 (UHP) ．3×4K60 | 6×4K30 | 13×1080p60 | 27×1080p30 H.264 (UHP) ．3×4K60 | 6×4K30 | 12×1080p60 | 24×1080p30
Video Decode	NVIDIA Jetson Thor™ 128GB AV1 (Main Profile) ．2×8K30 | 6×4K60 | 12×4K30 | 26×1080p60 | 54×1080p30 H.265 (Main, Main10) ．4×8K30 | 10×4K60 | 20×4K30 | 40×1080p60 | 82×1080p30 H.264 (Baseline, Main, High) ．4×8K30 | 10×4K60 | 22×4K30 | 42×1080p60 | 84×1080p30 VP9 (Profile 0, Profile 2) ．2×8K30 | 8×4K60 | 16×4K30 | 32×1080p60 | 64×1080p30
	NVIDIA Jetson Thor™ 64GB AV1 (Main Profile) ．1×8K30 | 3×4K60 | 6×4K30 | 13×1080p60 | 17×1080p30 H.265 (Main, Main10) ．2×8K30 | 5×4K60 | 10×4K30 | 20×1080p60 | 41×1080p30 VP9 (Profile 0, Profile 2) ．1×8K30 | 4×4K60 | 8×4K30 | 16×1080p60 | 32×1080p30
