Pixel Panel PC

System

Module	NVIDIA® Jetson Orin™ NX 16GB (1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5) NVIDIA® Jetson Orin™ NX 8GB (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5) NVIDIA® Jetson Orin™ Nano 8GB (1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)
Security	Platform Security Controller (PSC), Security Engine (SE)

LED

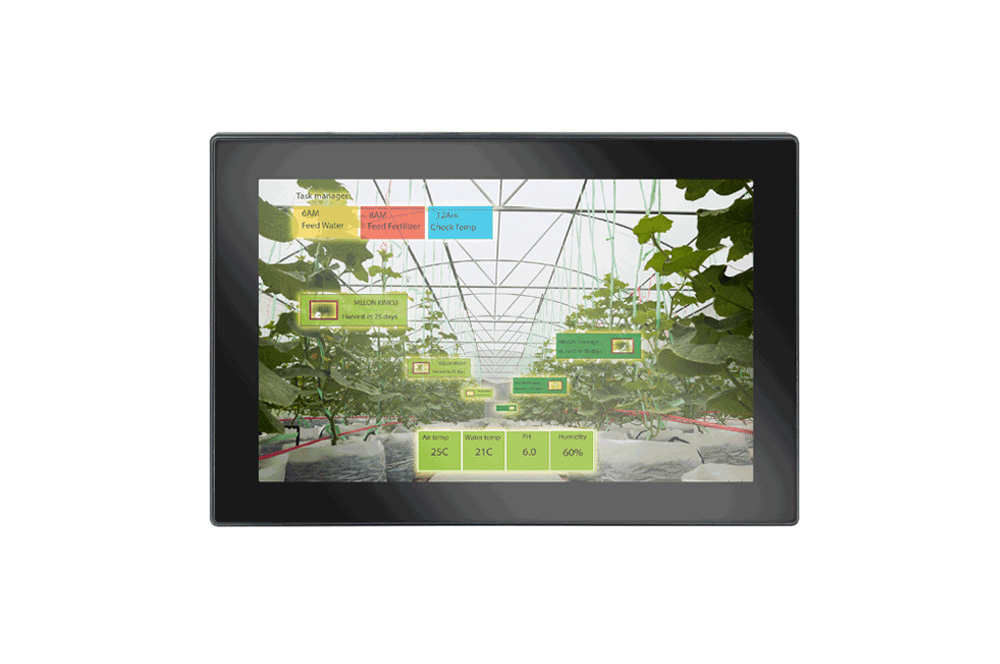

Screen Size	10.1 inches
Resolution	1280 × 800
View Angle (H/V)	178/178
Brightness (nits)	1000 nits (typical)
Contrast Ratio	800 : 1 (typical)
Lifetime (hrs)	50000

Touch

Type	PCT w/ AG and AF treatment
Bonding	Optional Bonding

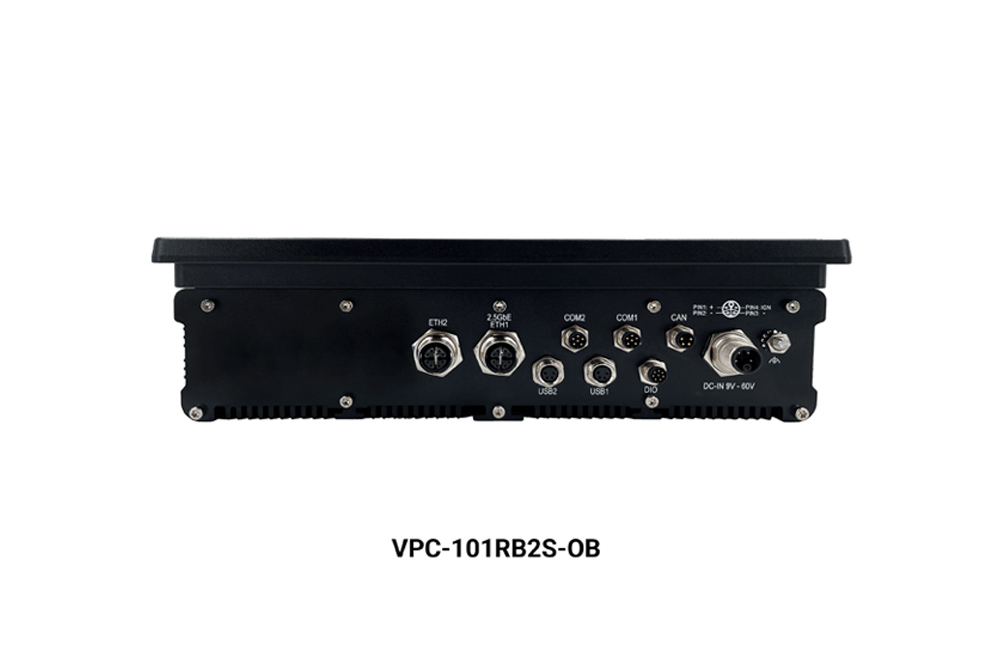

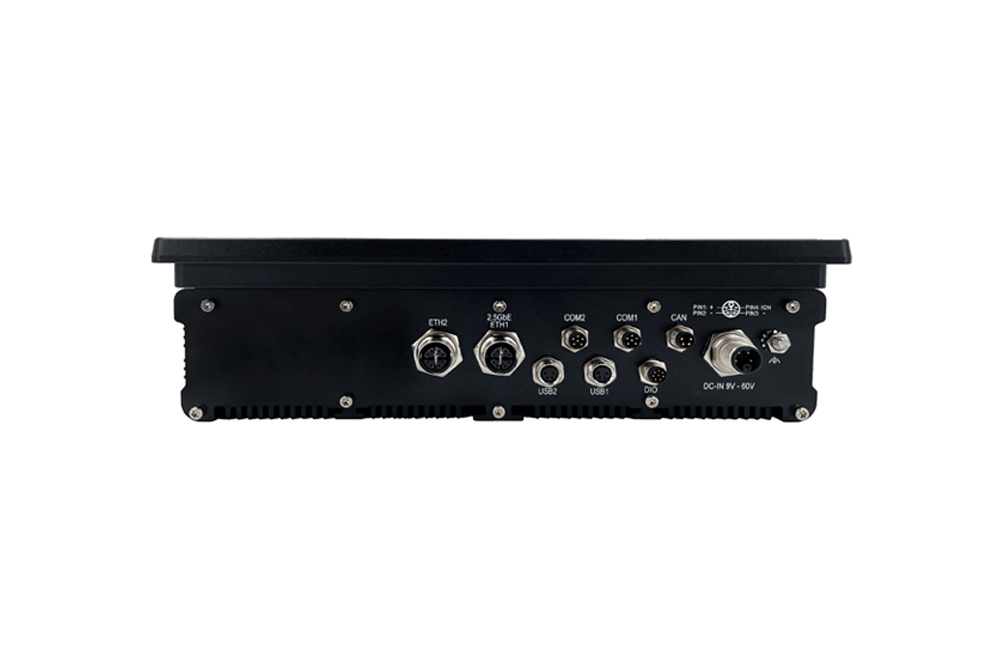

Interface

Audio	1 x Line-out, 1 x Mic-in (optional)

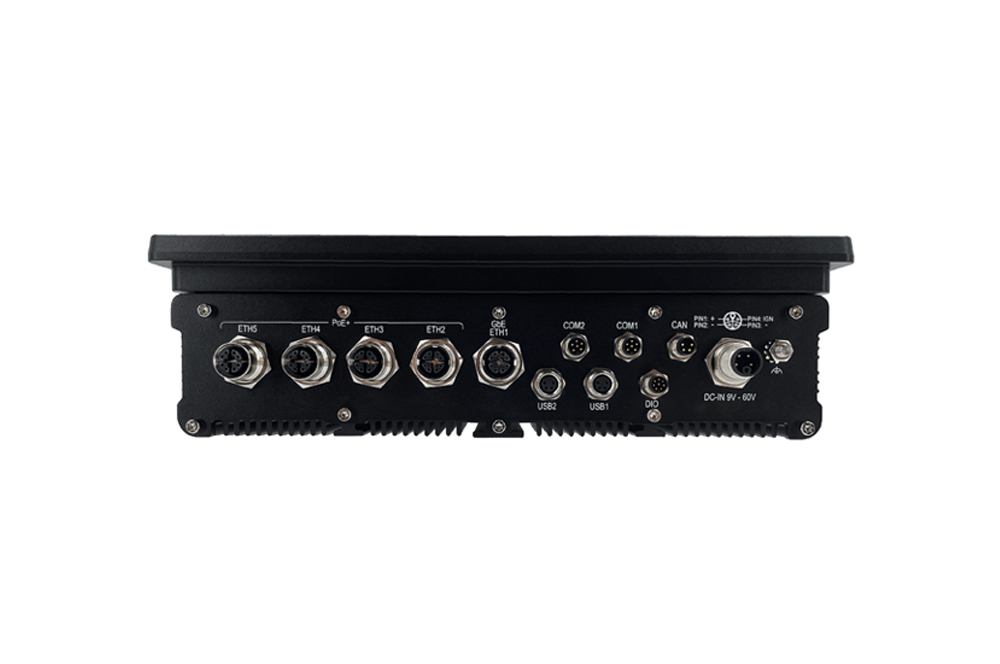

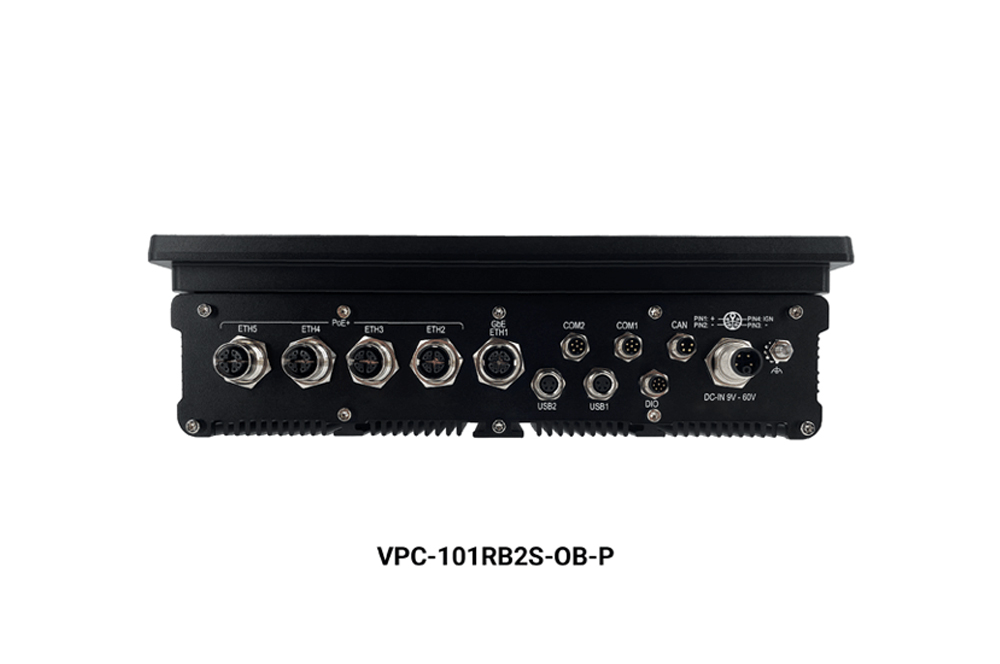

Etherent	1 x 2.5 GbE (Optional 4 x PoE+ for PoE model) 1 x GbE via M12 X-code

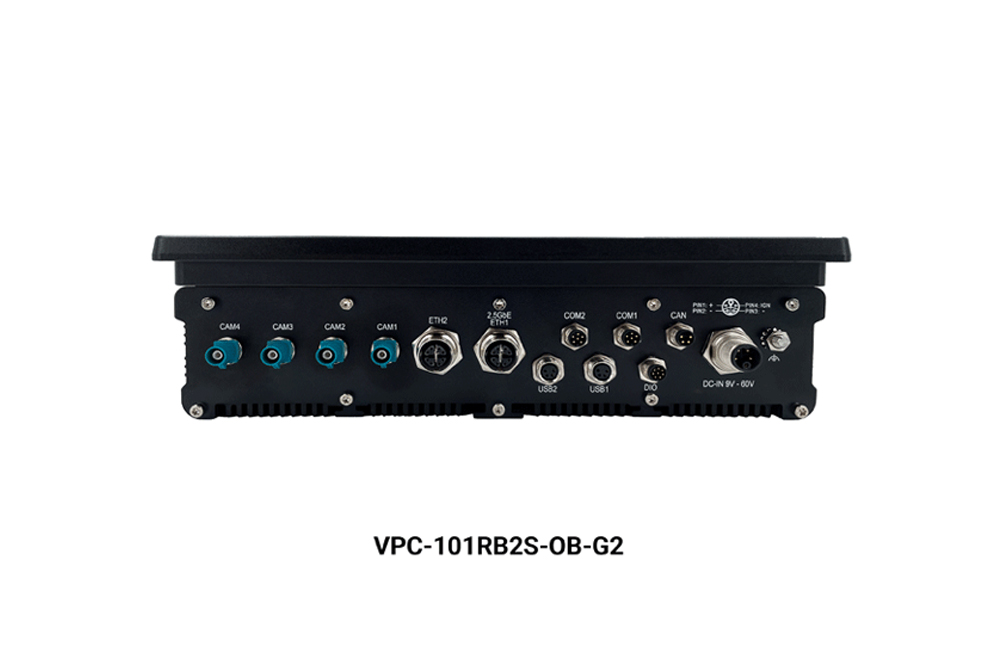

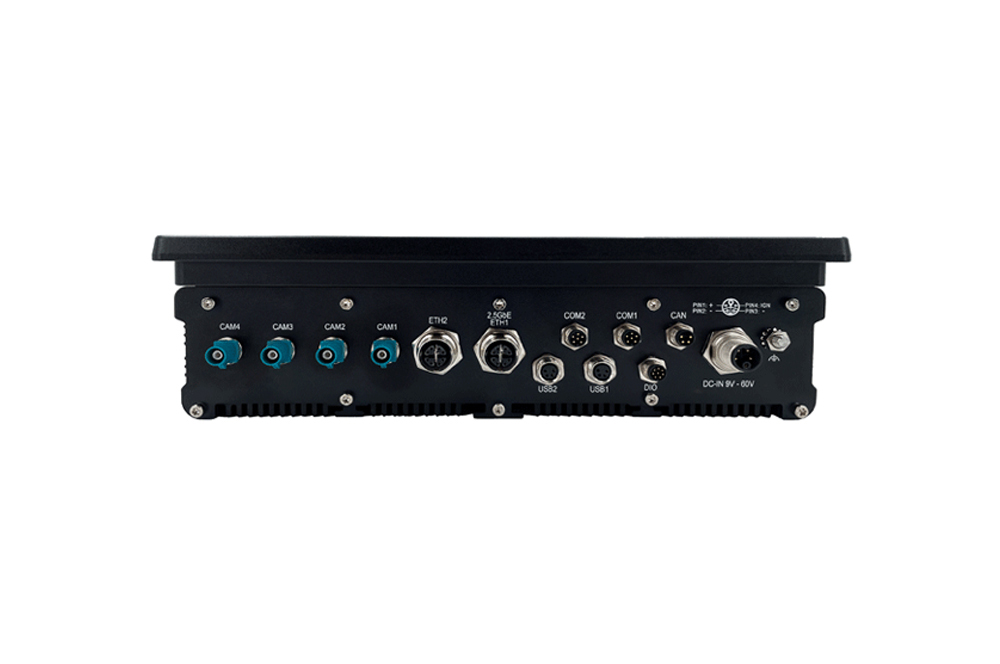

Camera	4 x GMSL-2 via FAKRA (for GMSL Model)
CAN	1 x CAN FD via M8
USB	2 x USB 2.0 via M8
DIO	3 x DI (DC 60 V) + 4 x DO (12VDC/100mA)
COM	1 x RS-232/422/485 via M8 1 x RS-232 via M8
Mgmt. Port	1 x USB Type-C (device only)

Power

Power Input	DC 9-60V (nominial power input DC 12V/24V/48V)
Power Protection	OCP, OVP, surge protection, reversed polarity protection
Power Mgmt.	Ignition detection
RTC Battery	Removable top tray for RTC coin cell battery

Internal Expansion

M.2	1 x M.2 3042/3052 Key B for WWAN w/ Nano SIM support 1 x M.2 2230 Key E for Wi-Fi/BT

Storage

Type	1 x M.2 2242 Key M for NVMe SSD (Pre-installed system BSP)

Software

Operating System	NVIDIA® JetPack 6.2 or above (Jetson Linux and NVIDIA® development tools included)

Mechanical

Dimension	260 x 179 x 75 (10.24 x 7.05 x 2.96 in.)
Weight	4.15 kg (9.15 lb)
Mounting	VESA 100 x 100
Antenna	6 x SMA connector mounting hole
IP Rating	IP66

Environment

Relative Humidity	10% RH ~ 95% RH (non-condensing)
Operating Temp.	-25°C ~ 60°C (-13°F ~ 140°F) with 0.6 m/s airflow
Storage Temp.	-40°C ~ 85°C (-40°F ~ 185°F)
Vibration	IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis MIL-STD-810H, Method 514.8, Procedure I, Category 4
Shock	MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)
Certification	CE, FCC Class A, UKCA, E-Mark
